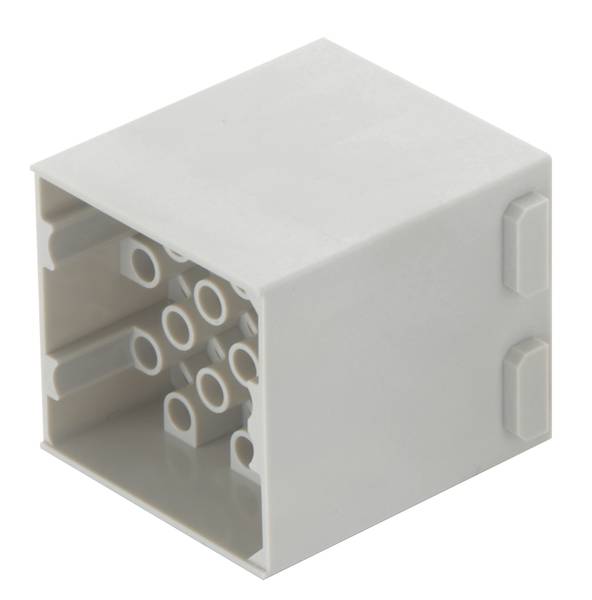

HARTING 09140363002 Twin module Han® DD-Modul 36 Crimp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Twin module
Series
Han® DD-Modul
Connection
Crimp
Total no. of pins
36
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Twin module
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® DD-Modul
- Connection
Crimp
- Number of pins
36
- Total no. of pins
36
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han-Modular®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
400 V
FALSE
36
Pin
-40-125 °C
V0
6 kV
Crimp connection
Other
3
TRUE
0.14-2.5 mm²
0.14-2.5 mm²
FALSE
Other
Thermoplastic
10 A
Thermoplastic
500
36
