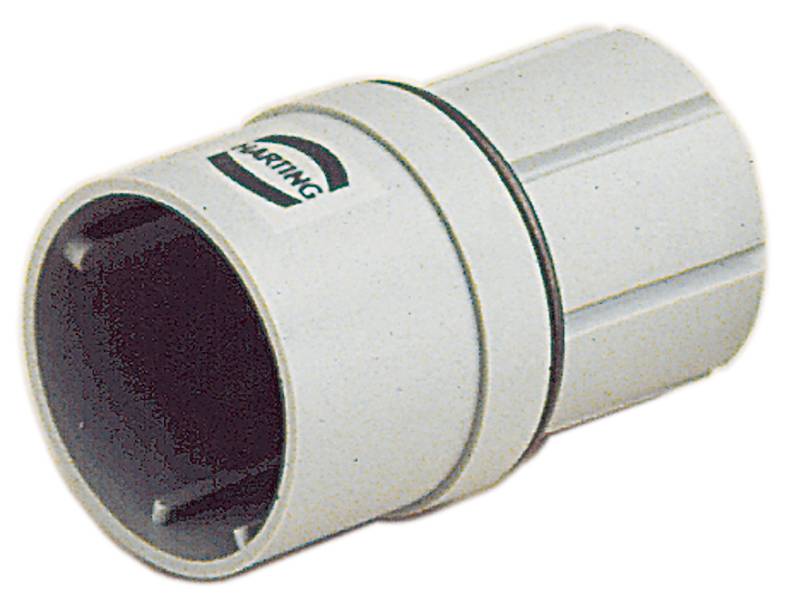

HARTING 09150073001 Pin inset 7 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Total no. of pins
7
Factory colour
Pebble grey (RAL 7032)
Number of pins
7
Datasheet (PDF)
Technical specifications
- R 15 series
- Connection type: Crimp connection
- Number of contacts: 7
- Rated current 10 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polyamide (PA)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: HB
- Net weight: 5.4 g
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Note: For plastic casing
- Gender: Pen
- Rated voltage according to UL: 600 V.
- Rated voltage according to CSA 600 V
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Connection
Crimp
- Number of pins
7
- Total no. of pins
7
- Mating cycles
≥ 500
- Series
R 15
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
250 V
7
Pin
-40-125 °C
HB
4 kV
Crimp connection
Other
Polyamide (PA)
Other
Thermoplastic
10 A
Plastic
500
Documents & Downloads
Datasheet
Datasheet 3007854 HARTING 09150073001 Pin inset 7 Crimp 1 pc(s)
Datasheet 3007854 HARTING 09150073001 Pin inset 7 Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007854 HARTING 09150073001 Pin inset 7 Crimp 1 pc(s)
Description
Inserts, Crimp connection, Pin, Polyamide (PA), RAL 7032 (pebble gray), Rated current 10 A, contacts 7
