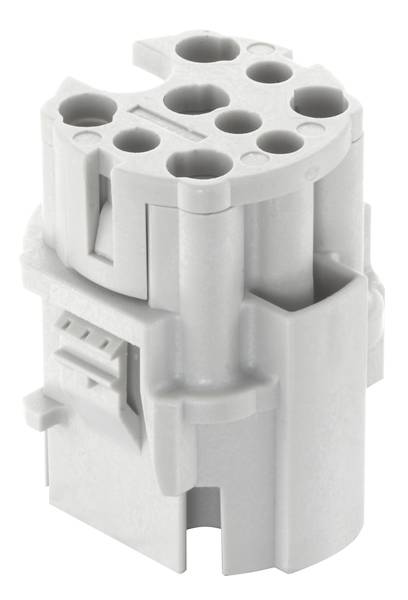

HARTING 09155123002 Pin inset 12 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Total no. of pins
12 + PE
Core cross section (min.)
0.14 mm²
Core cross section (max.)
4 mm²
Datasheet (PDF)
Technical specifications
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Connection
Crimp
- Number of pins
12
- Total no. of pins
12 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
4 mm²
- Mating cycles
≥ 3.000
- Series
Han® F+B
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
FALSE
12
Pin
-40-125 °C
V0
Crimp connection
Other
FALSE
0.14-4 mm²
0.14-4 mm²
TRUE
Other
Thermoplastic
Thermoplastic
500
12
Documents & Downloads
Datasheet
Datasheet 3007902 HARTING 09155123002 Pin inset 12 + PE Crimp 1 pc(s)
Datasheet 3007902 HARTING 09155123002 Pin inset 12 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007902 HARTING 09155123002 Pin inset 12 + PE Crimp 1 pc(s)
