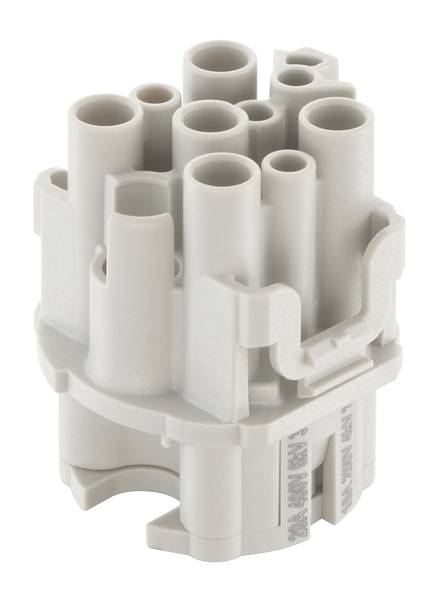

HARTING 09155123102 Pin inset 12 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Crimp
Total no. of pins
12 + PE
Core cross section (min.)
0.14 mm²
Core cross section (max.)
4 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® F+B.
- Connection type: Crimp connection
- Number of contacts: 12
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Net weight: 23.8 g
- Number of signal pins: 4
- Number of power contacts: 4
- Note: Please order crimp contacts separately.;4x HAN E®;4x HAN D®;4x M12 for data element;incl. Ethernet element
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Gender: Jack
- Conductor cross-section: 0.14 ... 4 mm².
- Transmission features: Cat. 5 class D to 100 MHz
- Rated current (signal) 10 A
- Rated current (Power) 20 A.
- PE contact: Yes
- Rated voltage (Power) 400 V
- Number of data contacts: 4
- Mating cycles with other HMC components: ≥ 3,000
- Rated voltage (signal) 250 V
- Rated surge voltage (signal) 4 kV
- Pollution level (signal): 3
- Rated surge voltage (Power) 6 kV
- Pollution level (Power): 3
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Connection
Crimp
- Number of pins
12
- Total no. of pins
12 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
4 mm²
- Mating cycles
≥ 3.000
- Series
Han® F+B
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
FALSE
12
Bus
-40-125 °C
V0
Crimp connection
Other
FALSE
0.14-4 mm²
0.14-4 mm²
TRUE
Other
Thermoplastic
Thermoplastic
500
12
Documents & Downloads
Datasheet
Datasheet 3007830 HARTING 09155123102 Pin inset 12 + PE Crimp 1 pc(s)
Datasheet 3007830 HARTING 09155123102 Pin inset 12 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007830 HARTING 09155123102 Pin inset 12 + PE Crimp 1 pc(s)
Description
Inserts, Crimp connection, socket, polycarbonate (PC), RAL 7032 (pebble gray), Contacts: 12, conductor cross-section: 0.14...4 mm²
