HARTING 09156000902 Enclosure only Enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure only
Connector type
Enclosure
Content
1 pc(s)
Type
09 15 600 0902
Max. temperature
+125 °C
Datasheet (PDF)
Technical specifications
- Series: Round plug connector M23
- Locking type: Screw lock;ComLock - quick release fastener
- Temperature limit: -40 ... +125 °C
- Net weight: 94 g
- Designation: Power
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Protection class according to IEC 60529: IP67 in locked state;IP69 / IPX9K according to ISO 20653 in locked state
- Housing description: Angled; rotatable
- M23 design
- Casing type: Attachment casing
- Material housing: Copper zinc alloy
- Surface of housing: Nickel-plated
- Material sealing: NBR
- Mounting: Fixing hole 4x 2.75 mm
- Colour of seal: Black
- Type
09 15 600 0902
- Product type
Enclosure only
- Connector type
Enclosure
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Seal
Screw locking;ComLock - quick release fastener
- Case material
Copper alloy, zinc plated
- Mounting hole diameter
2.75 mm
- Weight
94 g
- Manufacturer part #
09156000902
Other
Screw
Brass
Other
-40-125 °C
Other
Housing extension
IP67
Documents & Downloads
Datasheet
Datasheet 3001531 HARTING 09156000902 Enclosure only Enclosure 1 pc(s)
Datasheet 3001531 HARTING 09156000902 Enclosure only Enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001531 HARTING 09156000902 Enclosure only Enclosure 1 pc(s)
Description

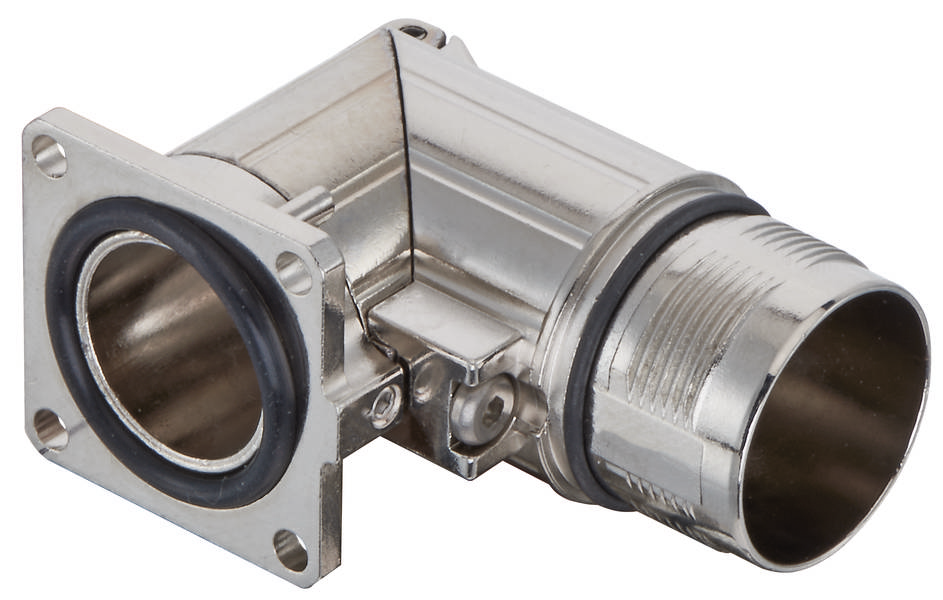

Attachment casing, angled, rotatable, size: M23, screw lock, ComLock - quick-release fastener, material of housing: copper zinc alloy, nickel-plated
