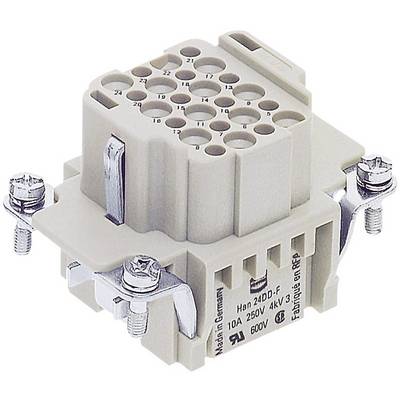

HARTING 09160243101 Socket inset Han® DD 24 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Series
Han® DD
Connection
Crimp
Total no. of pins
24 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
14-day return policy included
Highlights & Details
HARTING 09160243101 Socket inset Han® DD 24 + PE Crimp 1 pc(s)
Our service for you
Technical specifications
- Product type
Socket inset
- Factory colour
Grey
- Series
Han® DD
- Connection
Crimp
- Number of pins
24
- Total no. of pins
24 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Size
6 B
- Rated voltage
250 V
- Test current
10 A
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Type
Socket insert
- Core connector
14 -2.5 mm mm²
- Contamination level
3
- Connection
Crimp
- Temperature range
-40 - +125 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 749637 HARTING 09160243101 Socket inset Han® DD 24 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 749637 HARTING 09160243101 Socket inset Han® DD 24 + PE Crimp 1 pc(s)
Description
Connectors for high environmental requirements; loking clamp ensures high mechanical stability even under vibration or shock loads. Applicable in: Mechanical engineering, wind energy, switches cabinet construction, train technology.
Hints
Suitable crimp contacts must be ordered separately!
