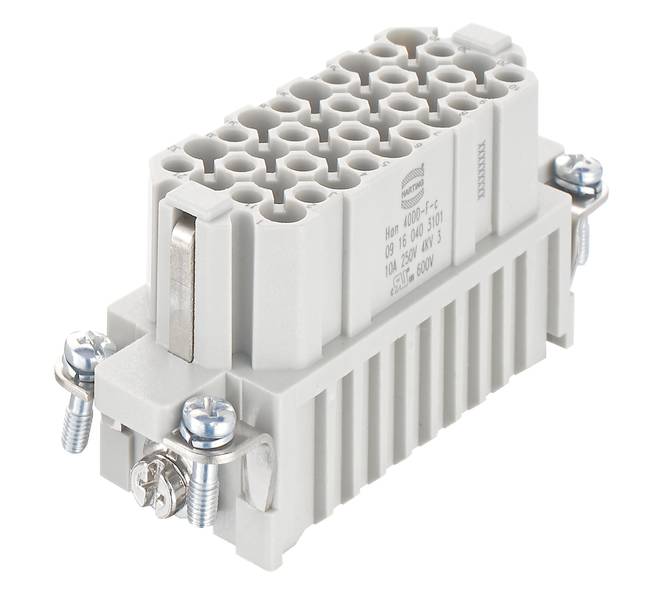

HARTING 09160403101 Pin inset Han® DD 40 + PE Crimp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Series
Han® DD
Connection
Crimp
Total no. of pins
40 + PE
Datasheet (PDF)
Technical specifications
- Series: HAN DD®
- Connection type: Crimp connection
- Number of contacts: 40
- Rated current 10 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 40 g
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Note: Please order crimp contacts separately.
- Gender: Jack
- Conductor cross-section: 0.14 ... 2.5 mm².
- Design size 16 A
- Approvals DNV GL
- PE contact: Yes
- Rated voltage according to UL: 600 V.
- Rated voltage according to CSA 600 V
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® DD
- Connection
Crimp
- Number of pins
40
- Total no. of pins
40 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han DD®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
250 V
FALSE
40
Bus
-40-125 °C
V0
4 kV
Crimp connection
Other
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other
Other
10 A
Other
500
40
Documents & Downloads
Datasheet
Datasheet 3007834 HARTING 09160403101 Pin inset Han® DD 40 + PE Crimp 1 pc(s) Piece
Datasheet 3007834 HARTING 09160403101 Pin inset Han® DD 40 + PE Crimp 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007834 HARTING 09160403101 Pin inset Han® DD 40 + PE Crimp 1 pc(s) Piece
Description
Inserts, crimp connector, socket, RAL 7032 (pebble gray), rated current 10 A, Size: 16 A, contacts: 40, conductor cross-section: 0.14...2.5 mm²
