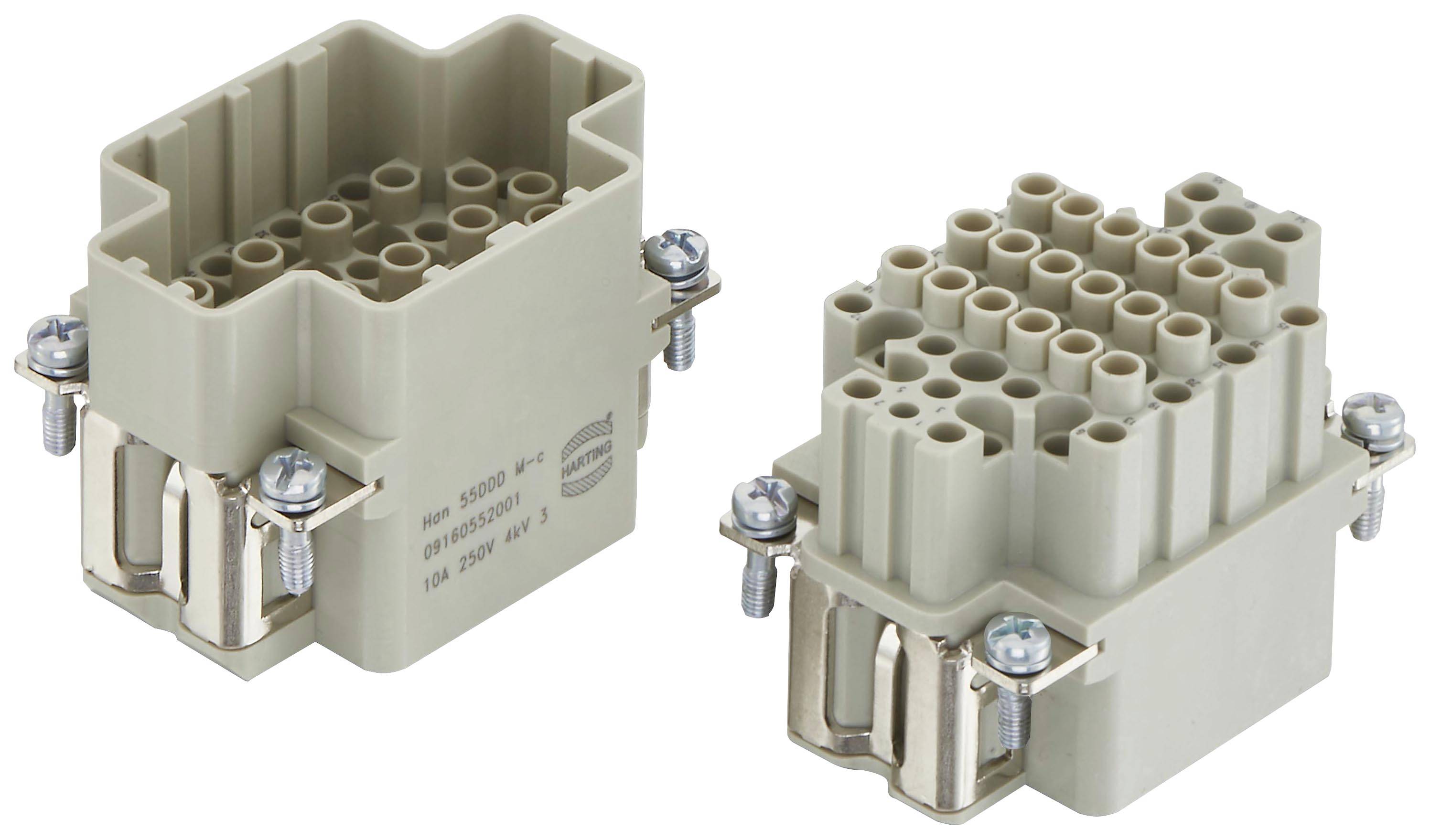

HARTING 09160752101 Connector 75 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connection
Crimp
Total no. of pins
75
Core cross section (min.)
0.14 mm²
Core cross section (max.)
2.5 mm²
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
14-day return policy included
Highlights & Details
Han® DDD insert
- The "Click and mate" principle ensures a safe assembly processExcellent mechanical robustness combined with minimum weightRear mounting of the inserts accelerates the installationIP66 protection rating
Our service for you
Technical specifications
- Size 6 B.Conductor cross-section 0.14 - 2.5 mm²Number of positions: 75Material: PolycarbonateFigure: FemaleMating cycles: ≥ 500Dimensioning surge voltage: 4 kVPollution level 3
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Connection
Crimp
- Number of pins
75
- Total no. of pins
75
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Rated voltage
250 V
- Test current
10 A
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2611465 HARTING 09160752101 Connector 75 Crimp 1 pc(s)
Description
The new Han® connectors simplify the installation of control cabinets.They help to overcome the challenges by saving time, e.g. when installing devices with the industry standard Han® . The two ends of the pre-assembled cable harnesses can be engaged directly in the housing.
