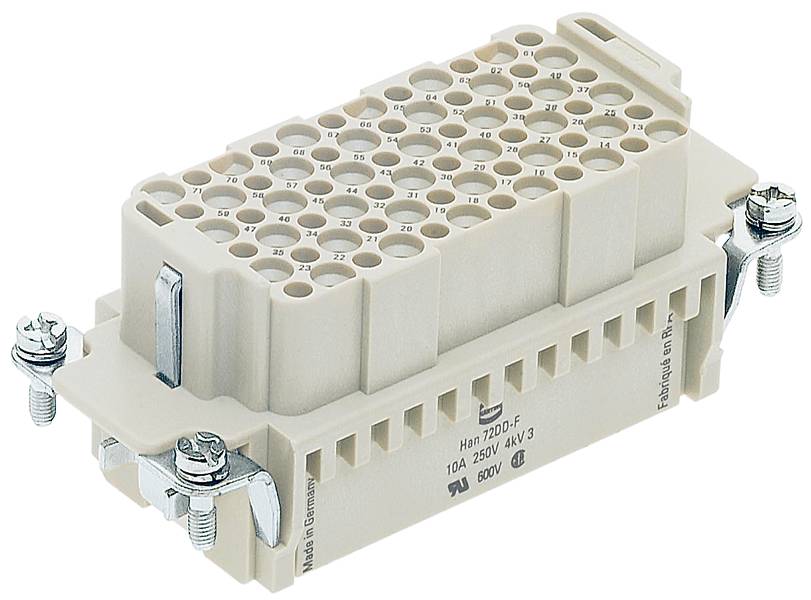

HARTING 09162723101 Connector Han® DD 72 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Series
Han® DD
Connection
Crimp
Total no. of pins
72 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN DD® HMC
- Connection type: Crimp connection
- Number of contacts: 72
- Rated current 10 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 63.68 g
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Note: Please order crimp contacts separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Jack
- Conductor cross-section: 0.14 ... 2.5 mm².
- Design size 16 B
- Approvals DNV GL
- PE contact: Yes
- Rated voltage according to UL: 600 V.
- Mating cycles with other HMC components: ≥ 10,000
- Rated voltage according to CSA 600 V
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® DD
- Features
no wire
- Connection
Crimp
- Number of pins
72
- Total no. of pins
72 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
10000
- Series
Han DD® HMC
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Connector type
Socket
250 V
FALSE
72
Bus
-40-125 °C
V0
4 kV
Crimp connection
Other
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other
Other
10 A
Other
10000
72
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007835 HARTING 09162723101 Connector Han® DD 72 + PE Crimp 1 pc(s)
Datasheet 3007835 HARTING 09162723101 Connector Han® DD 72 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007835 HARTING 09162723101 Connector Han® DD 72 + PE Crimp 1 pc(s)
Description
Inserts, crimp connector, socket, RAL 7032 (pebble gray), rated current 10 A, Size: 16 B, contacts: 72, cross-section: 0.14...2.5 mm²
