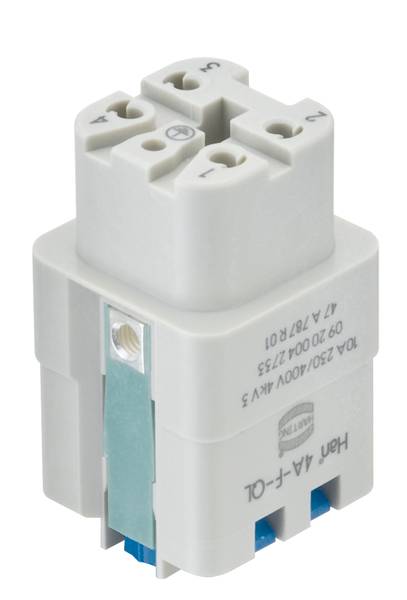

HARTING 09200042733 Pin inset Han® A 4 + PE Han Quick-Lock® 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® A
Connection
Han Quick-Lock®
Total no. of pins
4 + PE
Core cross section (min.)
0.5 mm²
Datasheet (PDF)
Technical specifications
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® A
- Features
tin-plated contacts
- Connection
Han Quick-Lock®
- Number of pins
4
- Total no. of pins
4 + PE
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han A®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
FALSE
4
Bus
-40-125 °C
V0
4 kV
Spring clamp connection
Silver
3
FALSE
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
10 A
Thermoplastic
500
4
- UKCA
yes
