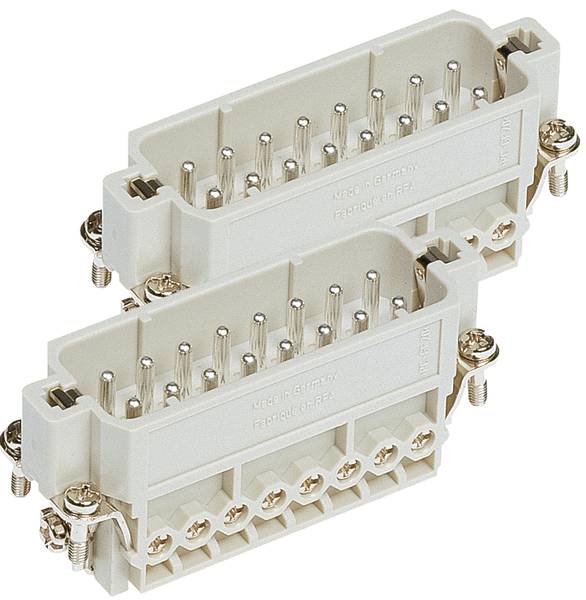

HARTING 09200162616 Pin inset Han® A 32 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® A
Connection
Screws
Total no. of pins
32 + PE
Core cross section (min.)
0.75 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN A®
- Connection type: screw terminals.
- Number of contacts: 32
- Rated current 16 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 1 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 65.6 g
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Hints: Two inserts are required for a complete assembly!
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 0.75 ... 2.5 mm².
- Description: Further printing
- Tightening torque 0.5 Nm
- Design size 32 A
- Approvals DNV GL
- PE contact: Yes
- Rated voltage according to UL: 600 V.
- Contact marking: 33 ... 48
- With wire protection: Yes
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® A
- Features
tin-plated contacts
- Connection
Screws
- Number of pins
32
- Total no. of pins
32 + PE
- Core cross section (min.)
0.75 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han A®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
250 V
TRUE
32
Pin
-40-125 °C
V0
4 kV
Screw connection
Silver
3
FALSE
0.75-2.5 mm²
0.75-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
500
32
Documents & Downloads
Datasheet
Datasheet 3008016 HARTING 09200162616 Pin inset Han® A 32 + PE Screws 1 pc(s)
Datasheet 3008016 HARTING 09200162616 Pin inset Han® A 32 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008016 HARTING 09200162616 Pin inset Han® A 32 + PE Screws 1 pc(s)
Description
Inserts, screw connection, pin, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 32 A, contacts 32
