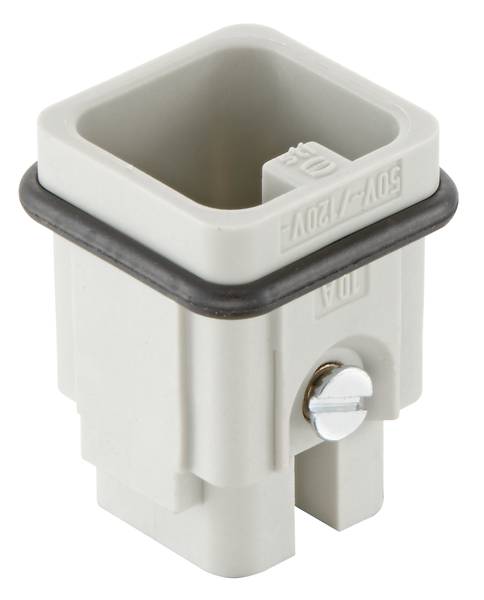

HARTING 09210073001 Pin inset Han® D 7 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® D
Connection
Crimp
Total no. of pins
7 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN D®
- Connection type: Crimp connection
- Number of contacts: 7
- Rated current 10 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polyamide (PA)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: HB
- STANDARDS: IEC 60664-1; IEC 61984; EN 175301-801
- Net weight: 7.75 g
- Rated voltage: 50 V
- Dimensioning surge voltage: 0.8 kV
- Pollution level 3
- Note: Please order crimp contacts separately.;For plastic and metal housings
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 0.14 ... 2.5 mm².
- Design size 3 A
- Approvals DNV GL
- PE contact: Yes
- Material sealing: NBR
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® D
- Connection
Crimp
- Number of pins
7
- Total no. of pins
7 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han D®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
50 V
FALSE
7
Pin
-40-125 °C
HB
0.8 kV
Crimp connection
Other
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other
Thermoplastic
10 A
Thermoplastic
500
7
Documents & Downloads
Datasheet
Datasheet 3007853 HARTING 09210073001 Pin inset Han® D 7 + PE Crimp 1 pc(s)
Datasheet 3007853 HARTING 09210073001 Pin inset Han® D 7 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007853 HARTING 09210073001 Pin inset Han® D 7 + PE Crimp 1 pc(s)
Description
Inserts, Crimp connection, Pin, Polyamide (PA), RAL 7032 (pebble gray), Rated current 10 A, size 3 A, contacts 7
