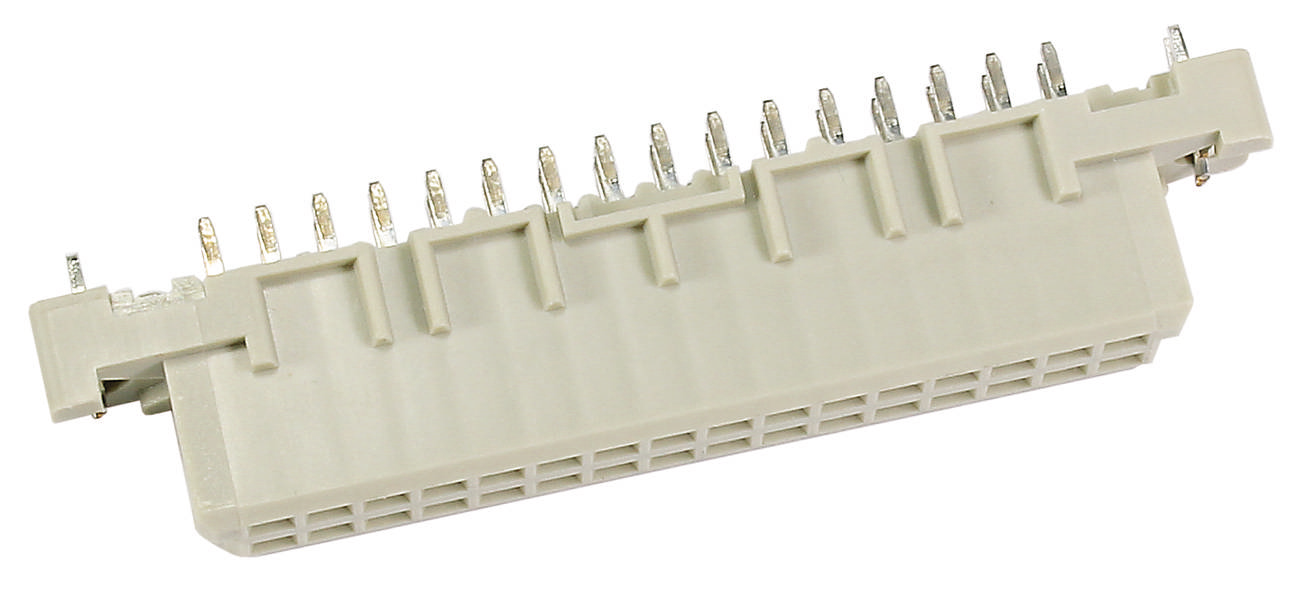

HARTING 09224326824 Edge connector (sockets) No. of rows 2 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (sockets)
Connector type
straight
CS
2.54 mm
Content
1 pc(s)
Total number of pins
32
Datasheet (PDF)
Highlights & Details
- Total number of pins 32
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (sockets)
- Connector type
straight
- Total number of pins
32
- No. of rows
2
- CS
2.54 mm
- Connection
Soldering
- Factory colour
Pebble grey (RAL 7032)
- Case material
PA
- Manufacturer part #
09224326824
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
09 22 432 6824
Other
32
Other
-55-125 °C
Other
Soldering connection
Tin
2.9 mm
2.54 mm
2
1.6 mm
2.54 mm
Thermoplastic
90° (upwards vertical)
Flange
2 A
