Buy HARTING 09330064626 Connector Han® E 6 + PE Screws 1 pc(s) Single

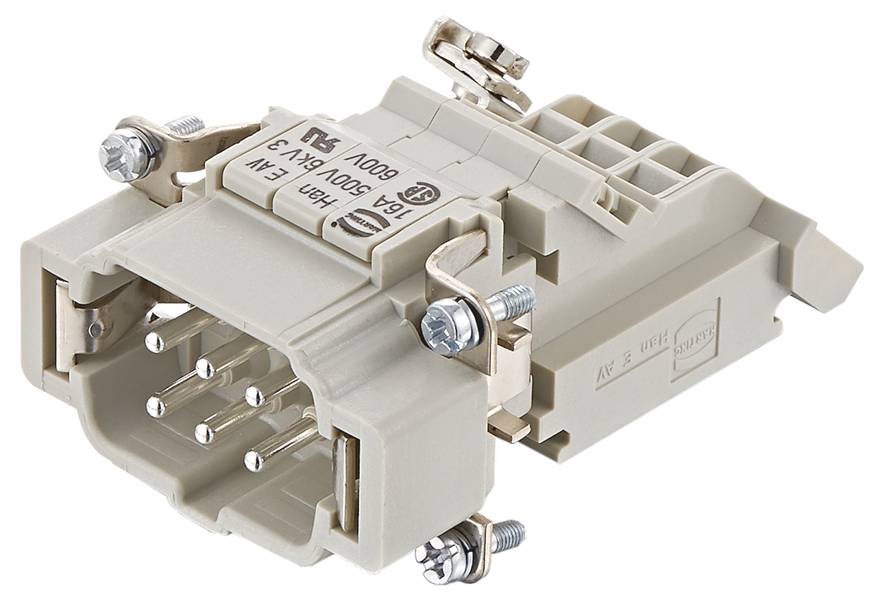

An electrical multi-pin connector with screw fastenings. Labels and product information are visible.

Packaging type

Single

Product type

Connector

Series

Han® E

Connection

Screws

Total no. of pins

6 + PE

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

HAN E® AV series
Component: Connection distributor
Connection type: screw terminals.
Number of contacts: 6
Rated current ‌ 16 A
Insulation resistance >1010 Ω
Continuous Resistance ≤ 4 mΩ
Temperature limit: -40 ... +125 °C
Mating cycles ≥ 500
Material application: Polycarbonate (PC)
Colour use: RAL 7032 (pebble gray)
Material contacts: Copper alloy
Silver-plated contact surface
Material flammability class acc. To UL 94: V-0
Standards IEC 60664-1; IEC 61984
Net weight: 82.26 g
Rated voltage: 500 V
Dimensioning surge voltage: 6 kV
Pollution level 3
Fire protection in rail vehicles: EN 45545-2 (2020-08)
Gender: Pen
Conductor cross-section: 0.2 ... 2.5 mm².
Description: Left version;single contour (SK)
Tightening torque 0.5 Nm
Design size 6 B
Approvals DNV GL
PE contact: Yes
Rated voltage according to UL: 600 V.

Packaging type: Single

Product type: Connector

Factory colour: Pebble grey (RAL 7032)

Series: Han® E

Features: with screw connection

Connection: Screws

Number of pins: 6

Total no. of pins: 6 + PE

Core cross section (min.): 0.2 mm²

Core cross section (max.): 2.5 mm²

Mating cycles: ≥ 500

Series: Han E® AV

Content: 1 pc(s)

Max. temperature: 125 °C

Min. temperature: -40 °C

Leading contact (PE): Yes

: 500 V

: FALSE

: 6

: Pin

: -40-125 °C

: V0

: 6 kV

: Screw connection

: Silver

: 3

: FALSE

: 0.2-2.5 mm²

: 0.2-2.5 mm²

: TRUE

: Other copper alloys

: Thermoplastic

: 16 A

: Thermoplastic

: 500

: 6

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Series

Connection

Factory colour

Core cross section (max.)

Core cross section (min.)

Total no. of pins

Product type

Packaging type

HARTING 09330064626 Connector Han® E 6 + PE Screws 1 pc(s) Single

Item no:3007737

This article

Han® E

Screws

Pebble grey (RAL 7032)

2.5 mm²

0.2 mm²

6 + PE

Connector

Single

HARTING 09330104729 Connector 10 + PE Spring-loaded heavy duty connector 1 pc(s) Piece

Item no:3007706

Spring-loaded heavy duty connector

Pebble grey (RAL 7032)

2.5 mm²

0.14 mm²

10 + PE

Connector

Piece

HARTING 09330064729 Connector 6 + PE Spring-loaded heavy duty connector 1 pc(s) Single

Item no:3007708

Spring-loaded heavy duty connector

Pebble grey (RAL 7032)

2.5 mm²

0.14 mm²

6 + PE

Connector

Single

HARTING 09330104629 Connector 10 Spring-loaded heavy duty connector 1 pc(s) Piece

Item no:3007710

Spring-loaded heavy duty connector

Pebble grey (RAL 7032)

2.5 mm²

0.14 mm²

Connector

Piece

HARTING 09330064639 Connector 6 + PE Spring-loaded heavy duty connector 1 pc(s) Piece

Item no:3007714

Spring-loaded heavy duty connector

Pebble grey (RAL 7032)

2.5 mm²

0.14 mm²

6 + PE

Connector

Piece

HARTING 09330064629 Connector 6 + PE Spring-loaded heavy duty connector 1 pc(s) Single

Item no:3007715

Spring-loaded heavy duty connector

Pebble grey (RAL 7032)

2.5 mm²

0.14 mm²

6 + PE

Connector

Single

HARTING 09330104725 Connector Han® E 10 + PE Screws 1 pc(s) Piece

Item no:3007718

Han® E

Screws

Pebble grey (RAL 7032)

2.5 mm²

0.2 mm²

10 + PE

Connector

Piece

HARTING 09330064736 Connector Han® E 6 + PE Screws 1 pc(s)

Item no:3007723

Han® E

Screws

Pebble grey (RAL 7032)

2.5 mm²

0.2 mm²

6 + PE

Connector

HARTING 09330064726 Connector Han® E 6 + PE Screws 1 pc(s) Piece

Item no:3007724

Han® E

Screws

Pebble grey (RAL 7032)

2.5 mm²

0.2 mm²

6 + PE

Connector

Piece

HARTING 09330104636 Connector Han® E 10 + PE Screws 1 pc(s)

Item no:3007725

Han® E

Screws

Pebble grey (RAL 7032)

2.5 mm²

0.2 mm²

10 + PE

Connector

Documents & Downloads

Datasheet

Datasheet 3007737 HARTING 09330064626 Connector Han® E 6 + PE Screws 1 pc(s) Single

User & Safety Instructions

User & Safety Instructions 3007737 HARTING 09330064626 Connector Han® E 6 + PE Screws 1 pc(s) Single

Description

Inserts, Connection distributor, Screw connection, Pin, Polycarbonate (PC), RAL 7032 (pebble gray), rated current: 16 A, size: 6 B, contacts: 6
