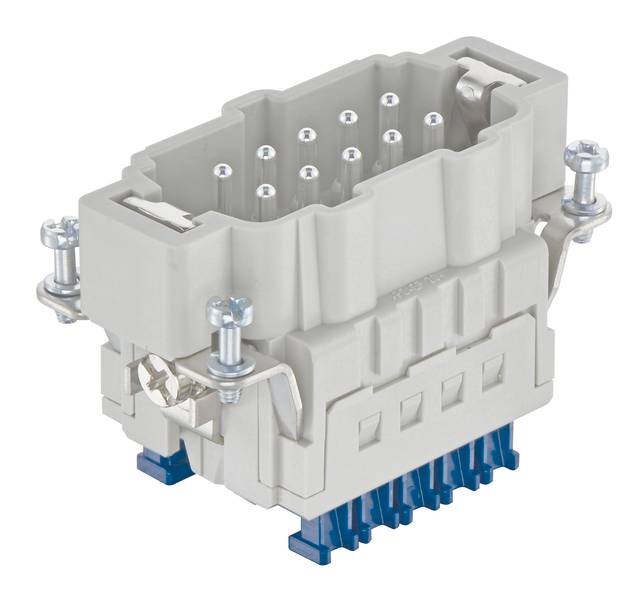

HARTING 09330102648 Connector Han® E 10 + PE Spring-loaded heavy duty connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Series
Han® E
Connection
Spring-loaded heavy duty connector
Total no. of pins
10 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- HAN® ES PRESS series
- Connection type: Spring-cage connection
- Number of contacts: 10
- Rated current 16 A
- Insulation resistance >1010 Ω
- Constant resistance: 3 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 72.54 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Notes: Blue actuator; only for housing of high design
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: AWG 26 ... AWG 14
- Stripping length: 9 ... 11 mm
- Colour Accessories: Blue
- Design size 10 B
- Approvals DNV GL
- PE contact: Yes
- Rated voltage according to UL: 600 V.
- Rated voltage according to CSA 600 V
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® E
- Features
high type
- Connection
Spring-loaded heavy duty connector
- Number of pins
10
- Total no. of pins
10 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
500
- Series
Han® ES Press
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
500 V
FALSE
10
Pin
-40-125 °C
V0
6 kV
Spring clamp connection
Silver
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
500
10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007932 HARTING 09330102648 Connector Han® E 10 + PE Spring-loaded heavy duty connector 1 pc(s)
Datasheet 3007932 HARTING 09330102648 Connector Han® E 10 + PE Spring-loaded heavy duty connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007932 HARTING 09330102648 Connector Han® E 10 + PE Spring-loaded heavy duty connector 1 pc(s)
Description
Inserts, cage spring connector, pin, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 10 B, contacts 10
