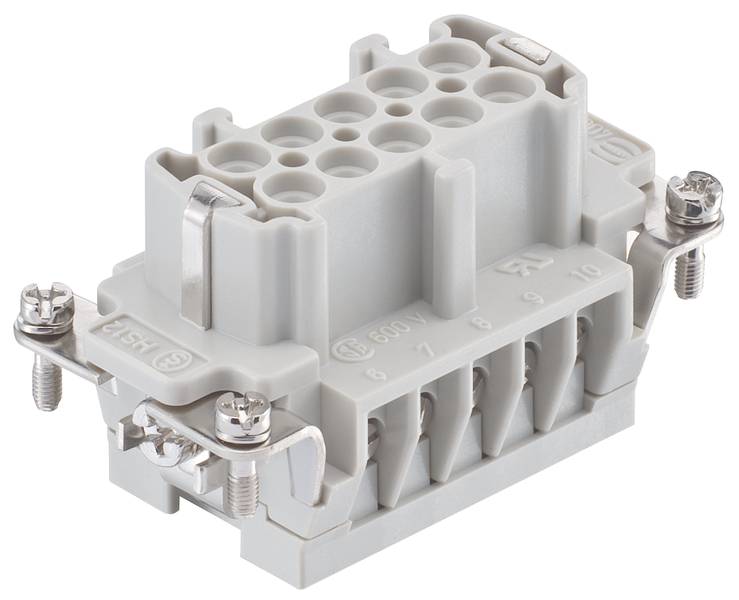

HARTING 09330102791 Connector Han® E 10 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Series
Han® E
Connection
Screws
Total no. of pins
10 + PE
Core cross section (min.)
1 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® Thermocoupling
- Connection type: screw terminals.
- Number of contacts: 10
- Rated current 16 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 70.2 g
- Designation: HAN E®
- Rated voltage: 400 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Jack
- Conductor cross-section: 1 ... 2.5 mm².
- Tightening torque 0.5 Nm
- Design size 10 B
- Approvals DNV GL
- PE contact: Yes
- With wire protection: Yes
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® E
- Features
with screw connection
- Connection
Screws
- Number of pins
10
- Total no. of pins
10 + PE
- Core cross section (min.)
1 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
500
- Series
Han® Thermocouple
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
400 V
TRUE
10
Bus
-40-125 °C
V0
6 kV
Screw connection
Other
3
FALSE
1-2.5 mm²
1-2.5 mm²
TRUE
Other
Thermoplastic
16 A
Thermoplastic
500
10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007984 HARTING 09330102791 Connector Han® E 10 + PE Screws 1 pc(s)
Datasheet 3007984 HARTING 09330102791 Connector Han® E 10 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007984 HARTING 09330102791 Connector Han® E 10 + PE Screws 1 pc(s)
Description
Inserts, screw connection, socket, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 10 B, contacts 10
