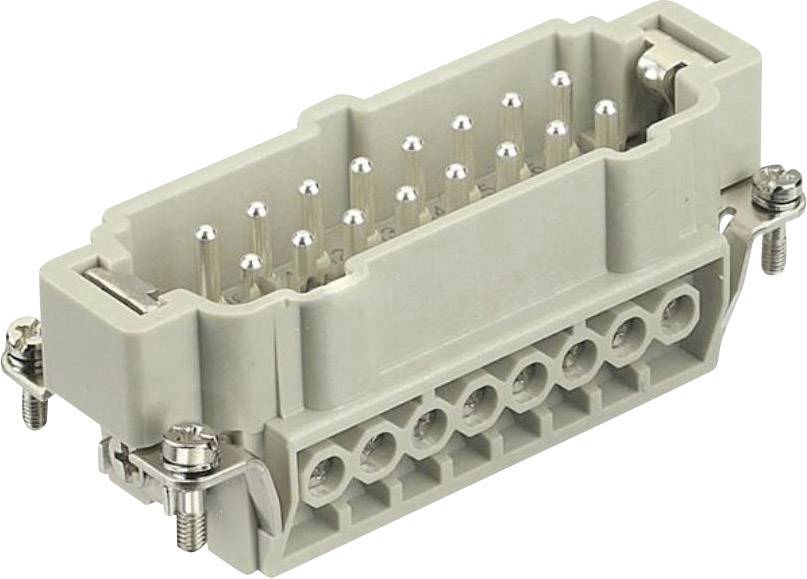

Image similar

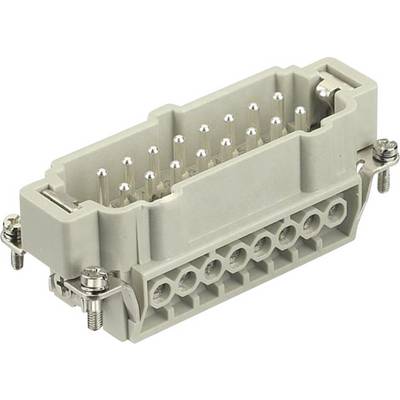

Image similar
HARTING 09330162611 Pin inset Han® E 16 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® E
Connection
Screws
Total no. of pins
16 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
14-day return policy included
Highlights & Details
HARTING 09330162611 Pin inset Han® E 16 + PE Screws 1 pc(s)
Technical specifications
- Product type
Pin inset
- Factory colour
Grey
- Series
Han® E
- Connection
Screws
- Number of pins
16
- Total no. of pins
16 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
4 mm²
- Mating cycles
≥ 500
- Size
32 B
- Series
17 - 32
- Rated voltage
500 V
- Test current
16 A
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Type
Pin insert
- Core connector
0.14 - 4 mm²
- Contamination level
3
- Pins
16 + PE
- Connection
Screws
- Temperature range
-40 - +125 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 749512 HARTING 09330162611 Pin inset Han® E 16 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 749512 HARTING 09330162611 Pin inset Han® E 16 + PE Screws 1 pc(s)
Description
Two-piece, heavy industrial connectors for the toughest requirements in the automotive, mechanical engineering and plant engineering. Two applications are connected together in the case to the 32-pole version
Hints
Consisting of 2 each 16-pin inserts. Suitable counterpart order No 74 15 86.
