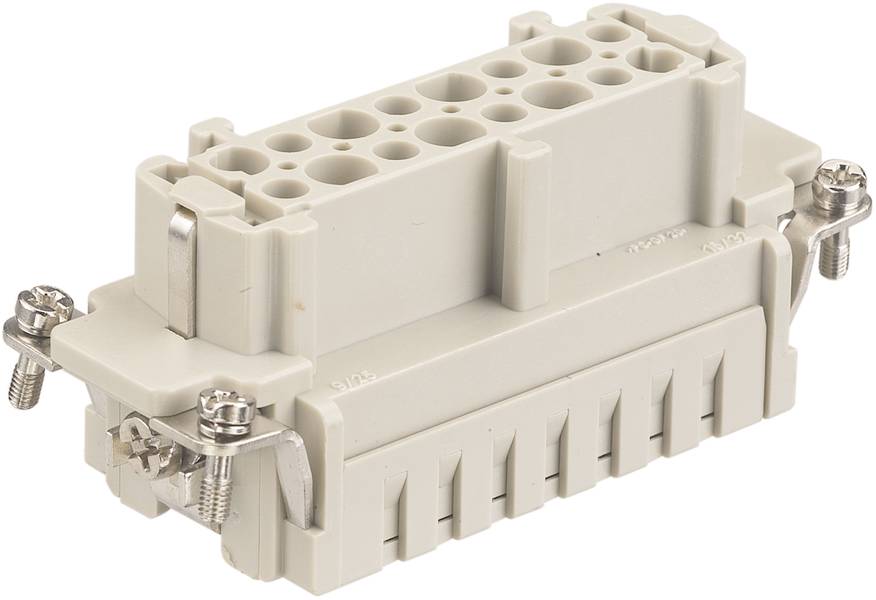

HARTING 09330162716XL Pin inset 16 + PE Spring-loaded heavy duty connector 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Connection
Spring-loaded heavy duty connector
Total no. of pins
16 + PE
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Features
tin-plated contacts
- Connection
Spring-loaded heavy duty connector
- Number of pins
16
- Total no. of pins
16 + PE
- Mating cycles
≥ 500
- Series
Han® ES
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
500 V
FALSE
16
Bus
-40-125 °C
V0
6 kV
Spring clamp connection
Silver
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
500
16
