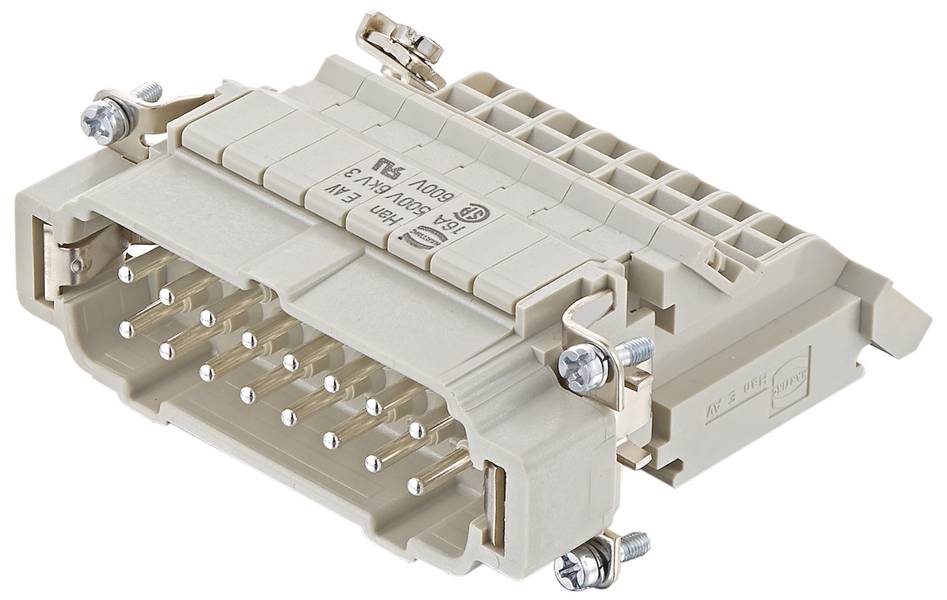

HARTING 09330164626 Connector Han® E 16 + PE Screws 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Series
Han® E
Connection
Screws
Total no. of pins
16 + PE
Datasheet (PDF)
Technical specifications
- HAN E® AV series
- Component: Connection distributor
- Connection type: screw terminals.
- Number of contacts: 16
- Rated current 16 A
- Insulation resistance >1010 Ω
- Continuous Resistance ≤ 4 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 161.02 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 0.2 ... 2.5 mm².
- Description: Left version;single contour (SK)
- Tightening torque 0.5 Nm
- Design size 16 B
- Approvals DNV GL
- PE contact: Yes
- Rated voltage according to UL: 600 V.
- Packaging type
Piece
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® E
- Features
+ wire protection
- Connection
Screws
- Number of pins
16
- Total no. of pins
16 + PE
- Core cross section (min.)
0.2 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
500
- Series
Han E® AV
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
500 V
FALSE
16
Pin
-40-125 °C
V0
6 kV
Screw connection
Silver
3
FALSE
0.2-2.5 mm²
0.2-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
500
16
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007732 HARTING 09330164626 Connector Han® E 16 + PE Screws 1 pc(s) Piece
Datasheet 3007732 HARTING 09330164626 Connector Han® E 16 + PE Screws 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007732 HARTING 09330164626 Connector Han® E 16 + PE Screws 1 pc(s) Piece
Description
Inserts, Connection distributor, Screw connection, Pin, Polycarbonate (PC), RAL 7032 (pebble gray), rated current: 16 A, size: 16 B, contacts: 16
