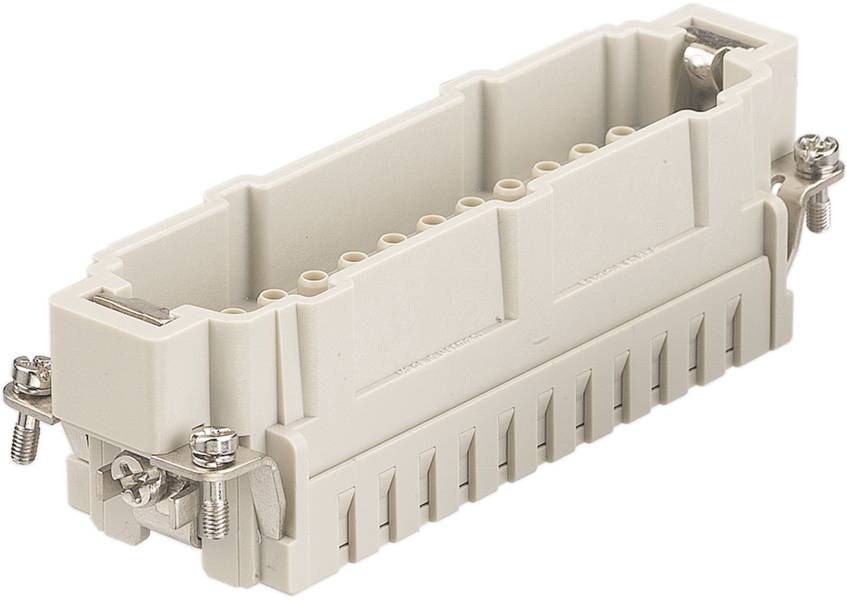

HARTING 09332242602 Connector Han® E 24 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Series
Han® E
Connection
Crimp
Total no. of pins
24 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN E® HMC
- Connection type: Crimp connection
- Number of contacts: 24
- Rated current 16 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 71.3 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Note: Please order crimp contacts separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: AWG 26 ... AWG 12
- Design size 24 B
- Approvals DNV GL
- PE contact: Yes
- Mating cycles with other HMC components: ≥ 10,000
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® E
- Features
no wire
- Connection
Crimp
- Number of pins
24
- Total no. of pins
24 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
4 mm²
- Mating cycles
10000
- Series
Han E® HMC
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
500 V
FALSE
24
Pin
-40-125 °C
V0
6 kV
Crimp connection
Other
3
FALSE
0.14-4 mm²
0.14-4 mm²
TRUE
Other
Thermoplastic
16 A
Thermoplastic
10000
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007888 HARTING 09332242602 Connector Han® E 24 + PE Crimp 1 pc(s)
Datasheet 3007888 HARTING 09332242602 Connector Han® E 24 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007888 HARTING 09332242602 Connector Han® E 24 + PE Crimp 1 pc(s)
Description
Inserts, Crimp connector, Pin, Polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 24 B, contacts 24
