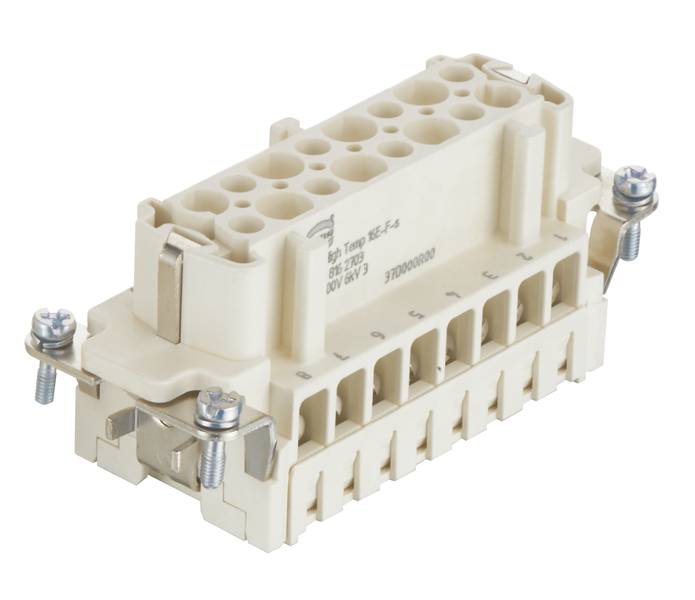

HARTING 09338162703 Connector 16 Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connection
Screws
Total no. of pins
16
Number of pins
16
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Series: HAN E® High Temp
- Connection type: screw terminals.
- Number of contacts: 16
- Rated current 16 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 1 mΩ
- Temperature limit: -40 ... +200 °C with HAN® High Temp components
- Mating cycles ≥ 500
- Material application: Liquid-crystal polymer (LCP)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 111.25 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Jack
- Conductor cross-section: AWG 18 ... AWG 14
- Wire stripping length: 7.5 mm
- Tightening torque 0.5 Nm
- Design size 16 B
- Approvals DNV GL
- PE contact: Yes
- With wire protection: Yes
- Product type
Connector
- Connection
Screws
- Number of pins
16
- Total no. of pins
16
- Content
1 pc(s)
- Connector type
Socket
500 V
TRUE
16
Bus
-40-200 °C
V0
6 kV
Screw connection
Silver
3
FALSE
0.75-2.5 mm²
0.75-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
500
16
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007976 HARTING 09338162703 Connector 16 Screws 1 pc(s)
Datasheet 3007976 HARTING 09338162703 Connector 16 Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007976 HARTING 09338162703 Connector 16 Screws 1 pc(s)
Description
Inserts, screw terminals, socket, liquid crystal polymer (LCP), rated current 16 A, Size 16 B, contacts 16
