HARTING 09360242701 Connector 24 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connection
Screws
Total no. of pins
24 + PE
Core cross section (min.)
0.75 mm²
Core cross section (max.)
2.5 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® Ex
- Connection type: screw terminals.
- Number of contacts: 24
- Rated current 16 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 1 mΩ
- Temperature limit: -20 ... +40 °C).
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Net weight: 110 g
- Rated voltage: 90 V
- Note: Caution! Can only be used in conjunction with HAN® Ex housings!
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Jack
- Conductor cross-section: 0.75 ... 2.5 mm².
- Tightening torque 0.5 Nm
- Design size 24 B
- PE contact: Yes
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Features
with screw connection
- Connection
Screws
- Number of pins
24
- Total no. of pins
24 + PE
- Core cross section (min.)
0.75 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
500
- Series
Han® Ex
- Content
1 pc(s)
- Max. temperature
+40 °C
- Min. temperature
-20 °C
- Leading contact (PE)
Yes
- Connector type
Socket
90 V
FALSE
24
Bus
-20-40 °C
V0
Screw connection
Silver
FALSE
0.75-2.5 mm²
0.75-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
500
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007991 HARTING 09360242701 Connector 24 + PE Screws 1 pc(s)
Datasheet 3007991 HARTING 09360242701 Connector 24 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007991 HARTING 09360242701 Connector 24 + PE Screws 1 pc(s)
Description

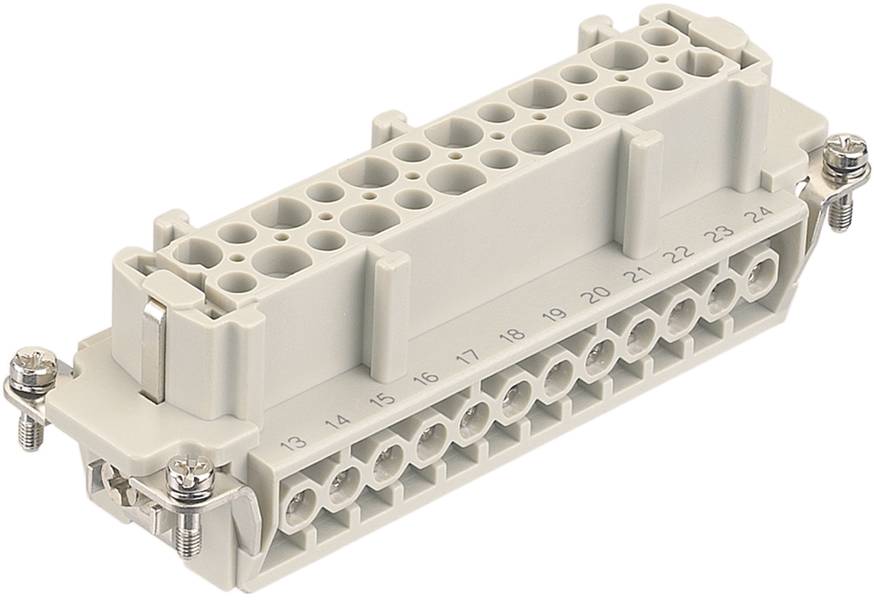

Inserts, screw connection, socket, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 24 B, contacts 24
