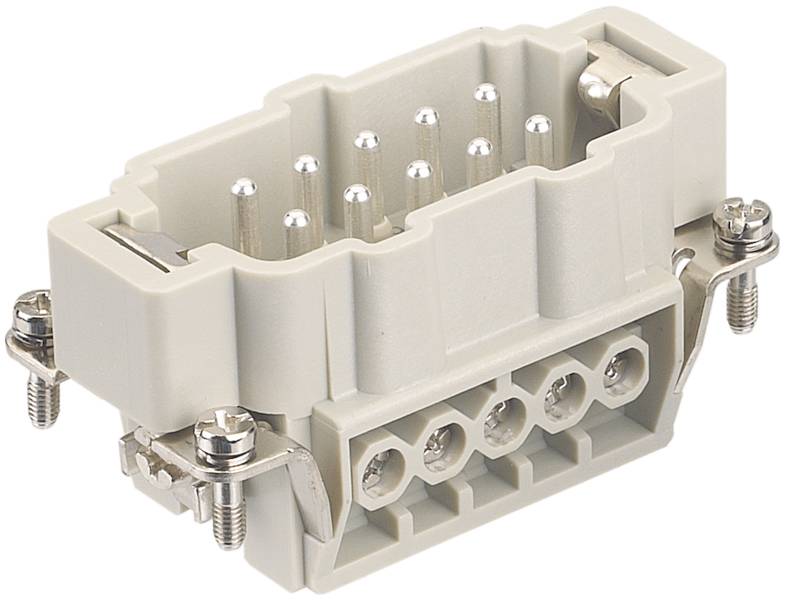

HARTING 09365102601 Pin inset Han® 10B 10 + PE Screws 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Series
Han® 10B
Connection
Screws
Total no. of pins
10 + PE
Datasheet (PDF)
Technical specifications
- Series: HAN® Ex
- Connection type: screw terminals.
- Number of contacts: 10
- Rated current 16 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 1 mΩ
- Temperature limit: -20 ... +40 °C).
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Net weight: 64.2 g
- Rated voltage: 90 V
- Note: Caution! Can only be used in conjunction with HAN® Ex housings!
- Gender: Pen
- Conductor cross-section: 0.75 ... 2.5 mm².
- Tightening torque 0.5 Nm
- Design size 10 B
- PE contact: Yes
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® 10B
- Connection
Screws
- Number of pins
10
- Total no. of pins
10 + PE
- Core cross section (min.)
0.75 mm²
- Core cross section (max.)
2.5 mm²
- Mating cycles
≥ 500
- Series
Han® Ex
- Content
1 pc(s)
- Max. temperature
+40 °C
- Min. temperature
-20 °C
- Leading contact (PE)
Yes
90 V
FALSE
10
Pin
-20-40 °C
V0
Screw connection
Silver
FALSE
0.75-2.5 mm²
0.75-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
500
10
Documents & Downloads
Datasheet
Datasheet 3008008 HARTING 09365102601 Pin inset Han® 10B 10 + PE Screws 1 pc(s) Piece
Datasheet 3008008 HARTING 09365102601 Pin inset Han® 10B 10 + PE Screws 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3008008 HARTING 09365102601 Pin inset Han® 10B 10 + PE Screws 1 pc(s) Piece
Description
Inserts, screw connection, pin, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 10 B, contacts 10
