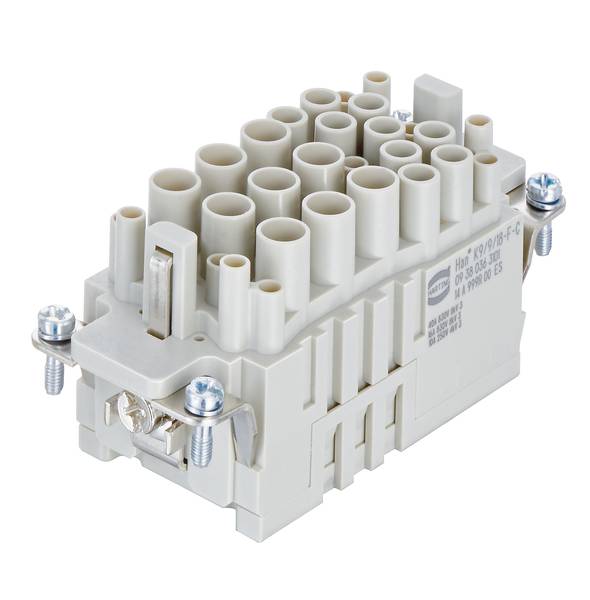

Buy HARTING 09380363101 Pin inset Han® Com 36 + PE Crimp 1 pc(s)

Product type

Pin inset

Series

Han® Com

Connection

Crimp

Total no. of pins

36 + PE

Core cross section (min.)

0.14 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Series: Han-Com®
Connection type: Crimp connection
Number of contacts: 36
Insulation resistance >1010 Ω
Temperature limit: -40 ... +125 °C
Mating cycles ≥ 500
Material application: Polycarbonate (PC)
Colour use: RAL 7032 (pebble gray)
Material flammability class acc. To UL 94: V-0
Standards IEC 60664-1; IEC 61984
Net weight: 72.8 g
Designation: HAN® K 9/9/18
Number of signal pins: 18
Number of power contacts: 18
Notes: Please order crimp contacts separately.;9x HAN® C;9x HAN E®;18x HAN D®;To ensure a leading PE contact, use guide pins/sockets (09 33 000 9908 / 09 33 000 9909).
Fire protection in rail vehicles: EN 45545-2 (2020-08)
Gender: Jack
Conductor cross-section: 1.5 ... 6 mm² power;0.14 ... 4 mm² power;0.14 ... 2.5 mm² Signal
Design size 16 B
Approvals DNV GL
Rated current (signal) 10 A
Rated current (Power) 40 A;16 A
PE contact: Yes
Rated voltage (Power) 830 V
Rated voltage (signal) 250 V
Rated surge voltage (signal) 4 kV
Pollution level (signal): 3
Rated surge voltage (Power) 8 kV
Pollution level (Power): 3
