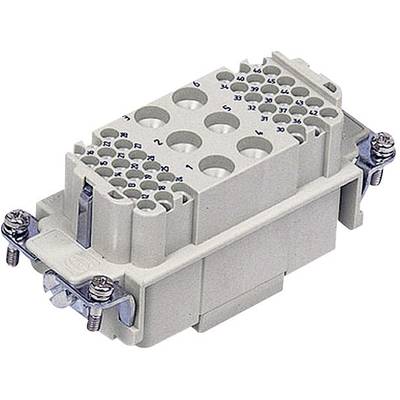

HARTING 09380423101 Socket inset Han® Com 6 + 36 + PE Screws 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Series
Han® Com
Connection
Screws
Total no. of pins
6 + 36 + PE
Factory colour
Grey
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Only 2 Piece(s) available
Highlights & Details
HARTING 09380423101 Socket inset Han® Com 6 + 36 + PE Screws 1 pc(s)
Our service for you
Technical specifications
- Product type
Socket inset
- Factory colour
Grey
- Series
Han® Com
- Features
copper-plated
tin-plated contacts
gold-plated contacts
- Connection
Screws
- Number of pins
6
36
- Total no. of pins
6 + 36 + PE
- Core cross section power contact (min.)
1.5 mm²
- Core cross section power contact (max.)
6 mm²
- Core cross section controller contact (min.)
0.14 mm²
- Core cross section controller contact (max.)
2.5 mm²
- Mating cycles
≥ 500
- Size
16 B
- Rated voltage
690/160 V (Leistungs-/Steuerungsbereich)
- Test current
40/10 A (Leistungs-/Steuerungsbereich)
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Type
Socket insert
- Core connector
1.5 - 6 / 0.14 / 2.5 mm² (power contacts / control contacts)
- Contamination level
3
- Pins
6 + PE/36 (consumption/control range)
- Connection
Crimp
- Temperature range
-40 - +125 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 749428 HARTING 09380423101 Socket inset Han® Com 6 + 36 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 749428 HARTING 09380423101 Socket inset Han® Com 6 + 36 + PE Screws 1 pc(s)
Description
With the Han® Com series, both the output and the control range are combined in a single plug connector
Hints
Suitable crimp contacts must be ordered separately!
