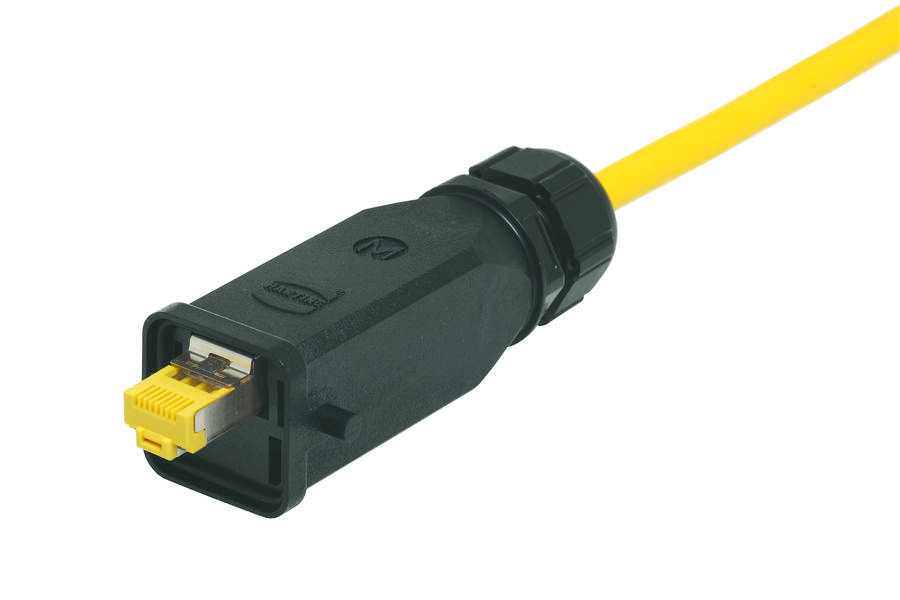

HARTING 09451251560 Connector Han® 3A 8 Cut & Clip connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Series
Han® 3A
Connection
Cut & Clip connector
Total no. of pins
8
Core cross section (min.)
0.1 mm²
Datasheet (PDF)
Technical specifications
- RJ45 series
- Component: Cable connector
- Connection type: IDC insulation displacement connection
- Number of contacts: 8
- Temperature limit: -40 ... +70 °C
- Net weight: 64 g
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Conductor cross-section: AWG 27/7 ... AWG 22/7 flexible;AWG 27/1 ... AWG 22/1 rigid
- Description: RJ45
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Cat. 6 class EA to 500 MHz
- Protection class according to IEC 60529:IP65;IP67
- PROFINET: Yes
- Housing description: Straight
- Design size 3 A
- Vibration resistance: 10-500 Hz, 5 g, 0.35 mm, 2h / axis; 7.9 m / s² according to IEC 61373 Category 1 Class B
- Approvals DNV GL
- Shock resistance: 5 g / 30 ms, 5 impacts / axle and direction according to IEC 61373 Category 1 Class B
- Casing type: Sleeve casing
- Material housing: Polycarbonate (PC)
- Colour of housing: Black
- Wire outer diameter: 1,06 mm
- Cable diameter: 5 ... 9 mm
- Product type
Connector
- Series
Han® 3A
- Features
EMC type
- Connection
Cut & Clip connector
- Number of pins
8
- Total no. of pins
8
- Core cross section (min.)
0.1 mm²
- Core cross section (max.)
0.32 mm²
- Series
RJ45
- Content
1 pc(s)
- Max. temperature
70 °C
- Min. temperature
-40 °C
Other
8
Plastic
Other
-40-70 °C
Other
Insulation displacement connection
Other
0.1-0.32 mm²
0.1-0.32 mm²
0.1-0.32 mm²
0.1-0.32 mm²
Other
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3001233 HARTING 09451251560 Connector Han® 3A 8 Cut & Clip connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001233 HARTING 09451251560 Connector Han® 3A 8 Cut & Clip connector 1 pc(s)
Description
Connector, RJ45 cable connector, IDC terminal connector, contacts: 8, sleeve casing, straight, size: HAN 3 A
