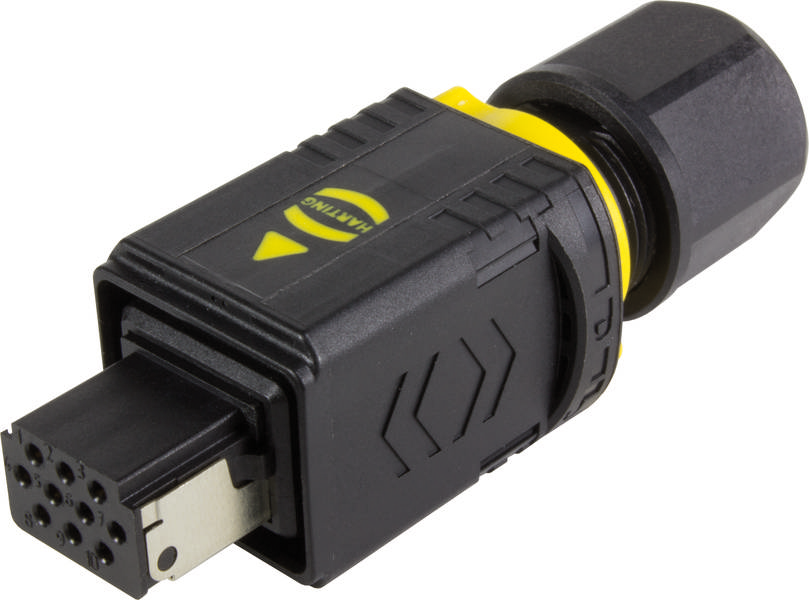

HARTING 09451459011 Connector Total number of pins: 10 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Total no. of pins
10
Connection
Crimp
Content
1 pc(s)
Nominal current - rounded value
5 A
Datasheet (PDF)
Technical specifications
- Harting PushPull (V4) Series
- Component: Cable connector
- Connection type: Crimp connection
- Number of contacts: 10
- Lock type: PushPull
- Grid, connection side 2.4 mm;3 mm
- Rated current 5 A
- Insulation resistance >109 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 500
- Test voltage Ueff: 1.5 kV (contact-contact);1.5 kV (contact-earth)
- Insulation material group I (600 ≤ CTI)
- Material contacts: Copper alloy
- Material flammability class acc. To UL 94: V-0
- IEC 61076-3-106 version 4 (V4);EN 45545-2
- Net weight: 37.85 g
- Name: Signal
- Pitch, plug-side 2.4 mm;3 mm
- Airway: ≥ 1.1 mm
- Creepage distance ≥ 1.1 mm
- Rated voltage: 50 V
- Dimensioning surge voltage: 1.5 kV
- Pollution level 3
- Plug-in force 50 N
- Pull force 50 N
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Conductor cross-section: AWG 26 ... AWG 18
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Cat. 5 class D to 100 MHz
- Protection class according to IEC 60529:IP65;IP67
- Tightening torque: 1.3 ... 1.5 Nm
- Vibration resistance: 10-500 Hz, 5 g, 0.35 mm, 2h / axis; 5.72 m / s² according to IEC 61373 Category 1 Class B
- Approvals DNV GL
- Shock resistance: 25 g / 11 ms, 3 impacts / axle and direction;5 g / 30 ms, 5 impacts / axle and direction according to IEC 61373 Category 1 Class B
- Material housing: Polyamide (PA)
- Colour of housing: Black
- Wire outside diameter: ≤ 2.1 mm
- Cable diameter: 4.5 ... 10 mm
- Type
09 45 145 9011
- Product type
Connector
- Total no. of pins
10
- Connection
Crimp
- Content
1 pc(s)
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Nominal voltage
50 V
- Contact material
Copper alloy
- Cable Ø (max.)
10 mm
- Cable Ø up to
4.5 mm
- Case material
Polyamide
- Manufacturer part #
09451459011
- Cable Ø range
4.5 - 10 mm
- Number of pins
10
IP65
IP67
Push Pull
50 V
10
Other
Plastic
Other
-40-85 °C
Other
1.5 kV
Crimp connection
Other
0.13-0.82 mm²
0.13-0.82 mm²
0.13-0.82 mm²
0.13-0.82 mm²
IP65
Other
Other copper alloys
Other
5 A
Documents & Downloads
Datasheet
Datasheet 3001236 HARTING 09451459011 Connector Total number of pins: 10 1 pc(s)
Datasheet 3001236 HARTING 09451459011 Connector Total number of pins: 10 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001236 HARTING 09451459011 Connector Total number of pins: 10 1 pc(s)
Description
Connector, cable connector, crimp, rated current 5 A, contacts 10, Copper alloy, PushPull, material: polyamide (PA)
