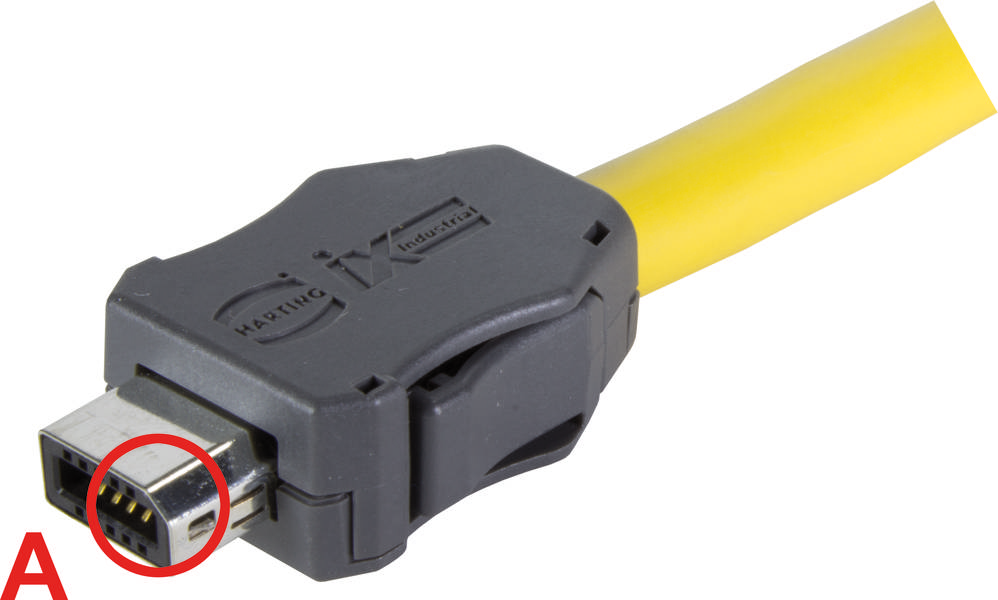

Close-up of a grey plug with a yellow cable, red circle marking metal contacts. Black background.

Close-up of a grey plug with a yellow cable, red circle marking metal contacts. Black background.

Product type

Connector

Total no. of pins

8

Connection

Cut & Clip connector

Content

1 pc(s)

Nominal current - rounded value

3 A

Datasheet (PDF)

English

HARTING

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type: 09 45 181 2561 XL

Product type: Connector

Total no. of pins: 8

Connection: Cut & Clip connector

Factory colour: Black

Content: 1 pc(s)

Nominal current: 3 A

Nominal current - rounded value: 3 A

Nominal voltage: 50 V AC
60 V DC

Contact material: Copper alloy

Cable Ø (max.): 7.2 mm

Cable Ø up to: 5.5 mm

Case material: Polycarbonate

Manufacturer part #: 09451812561XL

Cable Ø range: 5.5 - 7.2 mm

Number of pins: 8

: IP20

: Other

: 8

: Other

: Other

: Other

: -40-85 °C

: V0

: Insulation displacement connection

: Nickel/gold

: IP20

: FALSE

: Polyamide (PA)

: Other copper alloys

: Other

: 1.5 A

Documents & Downloads

Datasheet

English

Datasheet 3001220 HARTING 09451812561XL Connector Total number of pins: 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3001220 HARTING 09451812561XL Connector Total number of pins: 8 1 pc(s)
