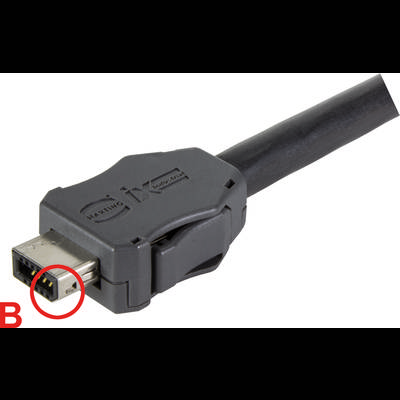

Buy HARTING 09451819000XL Connector Total number of pins: 10 1 pc(s)

Product type

Connector

Total no. of pins

Connection

Soldering

Content

1 pc(s)

Nominal current - rounded value

3 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Series: Harting ix Industrial®
Component: Cable connector
Connection type: Solder connection
Number of contacts: 10
Rated current:3 A when used with 4 contacts (1.2,6.7)
Insulation resistance >500 MΩ
Continuous resistance ≤ 30 mΩ
Temperature limit: -40 ... +85 °C
Mating cycles ≥ 5,000
Test voltage Ueff 0.5 kV
Material application: Polyamide (PA)
Colour insert: Black
Material contacts: Copper alloy
Contact surface Au ≥ 0.2 µm via Ni ≥ 2 µm plug side; Au ≥ 0.03 µm via Ni ≥ 2 µm on the side of the connector
Material flammability class acc. To UL 94: V-0
IEC 61076-3-124;EN 45545-2;IEEE 802.3af Power over Ethernet (PoE);IEEE 802.3at Power over Ethernet (PoE+);IEEE 802.3at Power over Ethernet (4PPPoE)
Net weight: 4.2 g
Name: Signal
RATED VOLTAGE ‌ 50 V AC;‌ 60 V DC

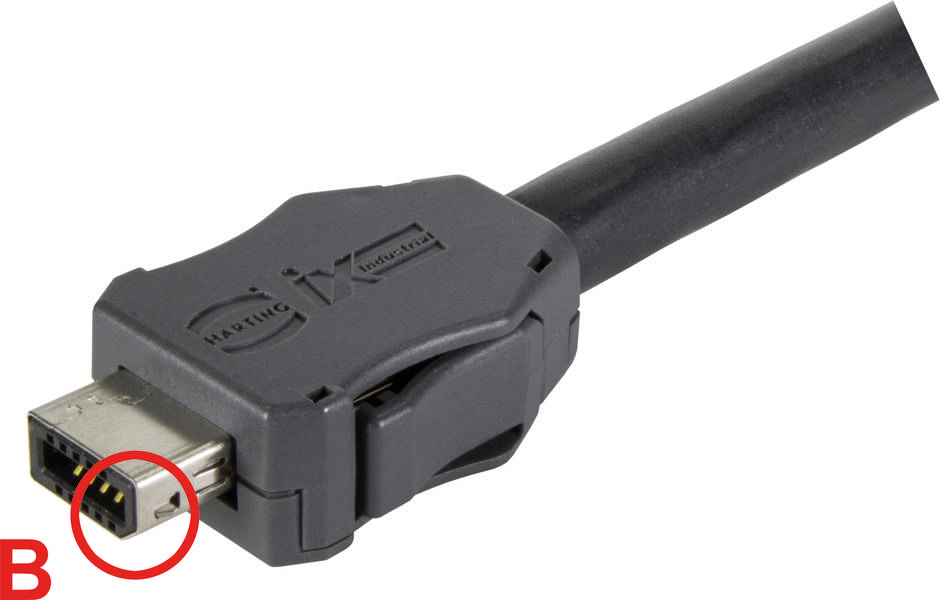

Coding: Type B
Plug-in force ≤ 25 N
Pull force ≤ 25 N
Conductor cross-section: AWG 28/7 ... AWG 22/7
Description: Straight
Shielding: Fully shielded, 360° shield contact
Shield resistance ≤ 100 mΩ
Storage temperature: -30 ... +60 °C
Relative humidity: 95% non-condensing (operating);95% non-condensing (storage/transport)
Protection class according to IEC 60529:IP20
Material shielding: Stainless steel; Ni ≥ 1 µm on the connection side, shielding (case); Ni ≥ 0.2 µm on the connection side, shield (shell)
Material housing: Polycarbonate (PC)
Colour housing: Grey
Wire outside diameter: ≤1.55 mm
Cable diameter: 5.5 ... 7.2 mm
Holding force ≥80 N locking
