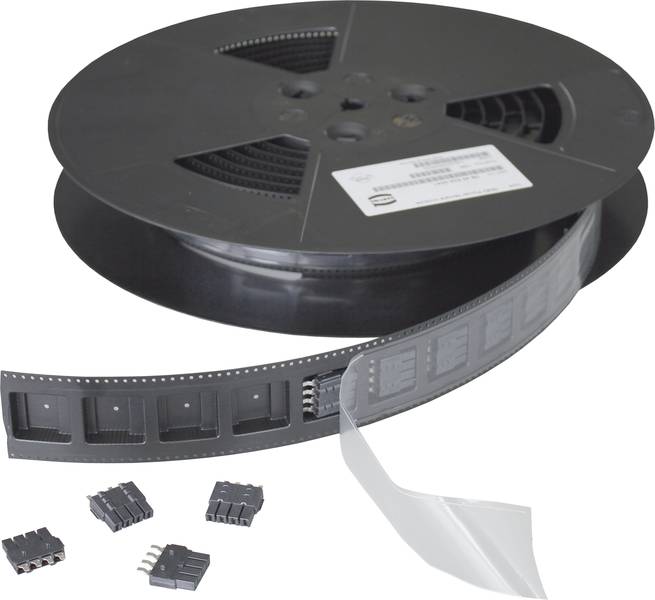

HARTING 09455250041 Module Han® 3A 0 SMT 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Module
Series
Han® 3A
Connection
SMT
Total no. of pins
0
Datasheet (PDF)
Technical specifications
- RJ45 Hybrid series
- Power module component
- Connection type: Reflow soldering connection (SMT)
- Number of contacts: 0
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 500
- Net weight: 6 g
- Conductor cross-section: 1.5 mm²
- Description: For direct device integration
- Shielding: Fully shielded, 360° shield contact
- PROFINET: Yes
- Design size 3 A
- Approvals DNV GL
- Packaging type
Piece
- Product type
Module
- Series
Han® 3A
- Connection
SMT
- Number of pins
0
- Total no. of pins
0
- Mating cycles
≥ 500
- Series
RJ45 Hybrid
- Content
1 pc(s)
- Max. temperature
+70 °C
- Min. temperature
-40 °C
FALSE
0
Other
-40-70 °C
Other
Soldering connection
Other
FALSE
1.5-1.5 mm²
1.5-1.5 mm²
Other
Other
Other
500
0
Documents & Downloads
Datasheet
Datasheet 3011343 HARTING 09455250041 Module Han® 3A 0 SMT 1 pc(s) Piece
Datasheet 3011343 HARTING 09455250041 Module Han® 3A 0 SMT 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3011343 HARTING 09455250041 Module Han® 3A 0 SMT 1 pc(s) Piece
Description
Plug connector, power module, reflow soldering connection (SMT), size: HAN 3 A, contacts: 0, cross section: 1.5 mm²
