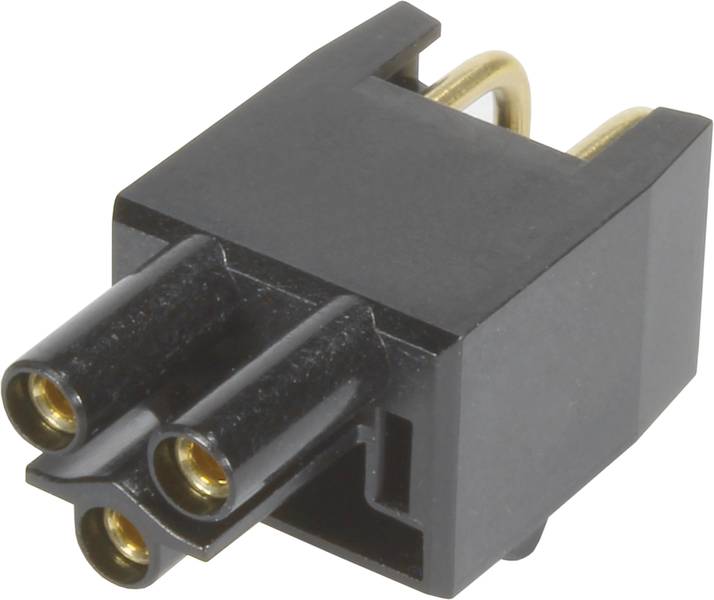

HARTING 09465003400 Socket enclosure Han® PushPull Power 2 + PE Soldering 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Series
Han® PushPull Power
Connection
Soldering
Total no. of pins
2 + PE
Features
L-shaped
Datasheet (PDF)
Technical specifications
- Harting PushPull (V4) Series
- Component: Jack
- Connection type: Solder connection
- Number of contacts: 2
- Lock type: PushPull
- Rated current 16 A
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 750
- Material flammability class acc. To UL 94: V-0
- IEC 61076-3-106 version 4 (V4);EN 45545-2
- Net weight: 4 g
- Designation: Power
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level: 2
- Description: Angled
- Shielding: Unshielded
- Protection class according to IEC 60529:IP65;IP67
- Approvals DNV GL
- PE contact: Yes
- Material housing: Plastic
- Colour of housing: Black
- Product type
Socket enclosure
- Series
Han® PushPull Power
- Features
L-shaped
- Connection
Soldering
- Number of pins
2
- Total no. of pins
2 + PE
- Mating cycles
≥ 750
- Series
HARTING PushPull (V4)
- Content
1 pc(s)
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
250 V
FALSE
2
Other
-40-70 °C
V0
4 kV
Soldering connection
Other
2
FALSE
TRUE
Other
Other
16 A
Other
750
2
Documents & Downloads
Datasheet
Datasheet 3011288 HARTING 09465003400 Socket enclosure Han® PushPull Power 2 + PE Soldering 1 pc(s)
Datasheet 3011288 HARTING 09465003400 Socket enclosure Han® PushPull Power 2 + PE Soldering 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3011288 HARTING 09465003400 Socket enclosure Han® PushPull Power 2 + PE Soldering 1 pc(s)
Description
Plug connector, socket, solder connection, rated current 16 A, contacts 2
