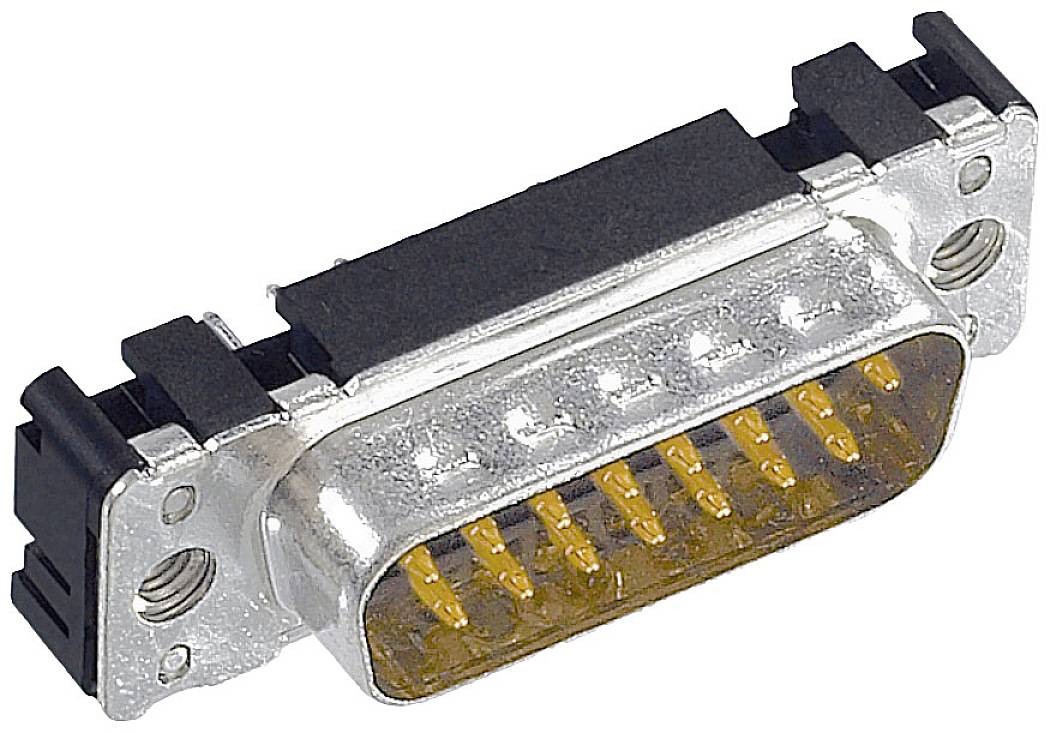

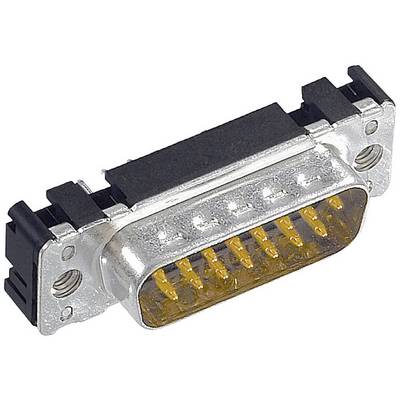

HARTING 09652696713 09652696713 D-SUB connector Number of pins: 15 Soldering 1 pc(s)
EAN:
Part number:
Item no:
Product type
D-SUB connector
Connector type
Plug, straight
Number of pins
15
Connection
Soldering
No. of rows
2
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
300
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Highlights & Details
D-SUB Connectors
- D-SUB connector
- No. of rows: 2
- Number of pins: 15
Technical specifications
- Size: D-Sub 2
- Locking type: Flange with mounted screw bolt 4-40 UNC
- Performance level 2
- Rated current 6.5 A
- Air distance: ≥ 1 mm
- Insulation resistance > 1010 Ω
- Insertion force ≤ 50 N.
- Resistance: ≤ 10 mΩ
- Product type
D-SUB connector
- Connector type
Plug, straight
- Number of pins
15
- Connection
Soldering
- No. of rows
2
- Content
1 pc(s)
- Manufacturer part #
09652696713
- Contact material
Copper alloy
- Contact surface
Gold
- Material (details)
Steel
- Test voltage
1 kV
- RoHS-compliant
Yes
- Temperature range
-55 °C to +125 °C. °C
- Type
09652696713
- UKCA
yes
