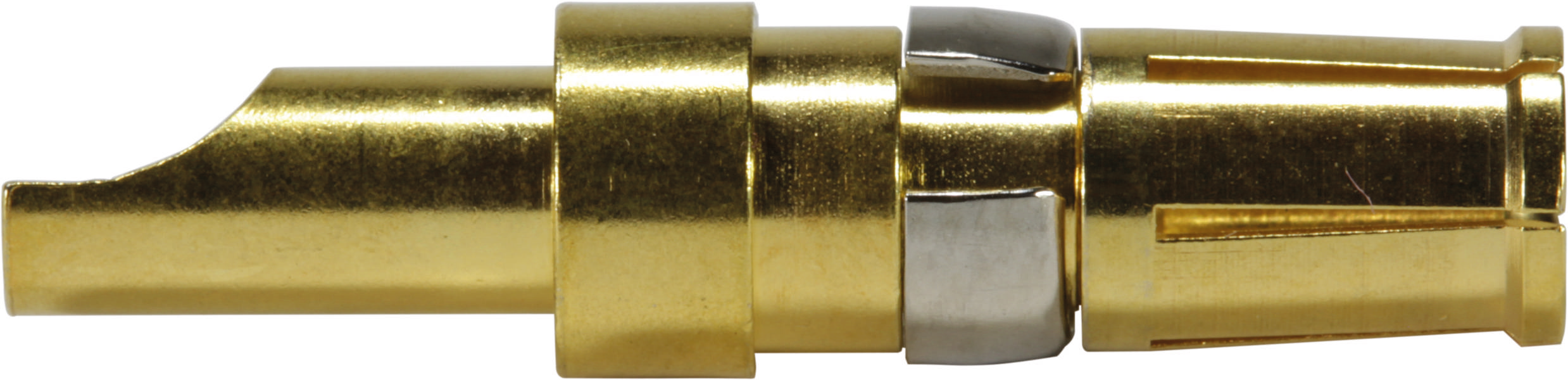

HARTING 09691815420 09 69 181 5420 Solder contact Copper alloy 10 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Solder contact
Contact material
Copper alloy
Content
1 pc(s)
Connection
Soldering
Mating cycles
500
Datasheet (PDF)
Technical specifications
- Series D-Sub
- Contact description: Straight
- Connection type: Solder connection
- Rated current ≤ 10 A
- Continuous resistance ≤ 1 mΩ
- Temperature limit: -55 ... +155 °C
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Contact surface: Precious metal over Ni
- Net weight: 1.78 g
- Layer thickness ≥ 30 µinch
- Designation: Mixed
- Plug-in force ≤ 7 N
- Pull force ≈ 5 N
- Contact type: Solder contact
- Gender: Jack
- Production process: Turned contacts
- Conductor cross-section: AWG 20 ... AWG 16
- Wire stripping length: 7.5 mm
- Material locking: Copper alloy
- Product type
Solder contact
- Contact material
Copper alloy
- Content
1 pc(s)
- Connection
Soldering
- Mating cycles
500
- Manufacturer part #
09691815420
- Contact type
Machined contacts
- Contact surface
Precious metal
- Nominal current
10 A
- Type
09 69 181 5420
Bus
-55-155 °C
Other
Other
7.5 mm
0.5-1 mm²
0.5-1 mm²
10 A
Other copper alloys
500
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3002221 HARTING 09691815420 09 69 181 5420 Solder contact Copper alloy 10 A 1 pc(s)
Datasheet 3002221 HARTING 09691815420 09 69 181 5420 Solder contact Copper alloy 10 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3002221 HARTING 09691815420 09 69 181 5420 Solder contact Copper alloy 10 A 1 pc(s)
Description
Solder contact, straight, operating current: 10 A, socket, copper alloy, Precious metal over Ni, conductor cross-section: 0.5...1 mm², AWG 20 ... AWG 16
