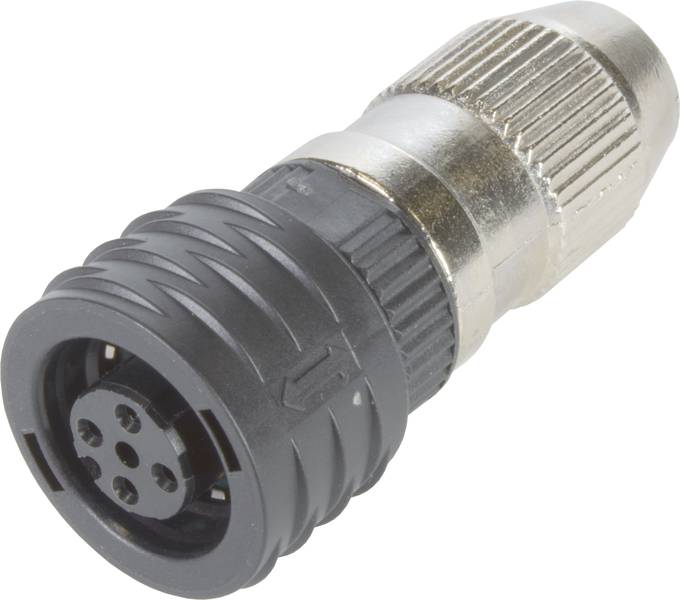

HARTING 21031112315 Connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connection
HARAX® Anschlusstechnik
Content
1 pc(s)
Type
21 03 111 2315
Max. temperature
85 °C
Datasheet (PDF)
Technical specifications
- Type
21 03 111 2315
- Product type
Connector
- Connection
HARAX® Anschlusstechnik
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Contact material
Copper alloy
- Cable Ø (max.)
5.1 mm
- Cable Ø up to
2.9 mm
- Case material
Diecast zinc
AWG 26 ... AWG 22
- Weight
10 g
- Manufacturer part #
21031112315
- Insulation material
Liquid crystal polymer
- Cable Ø range
2.9 - 5.1 mm
Push Pull
FALSE
Zinc
Other
-40-85 °C
Insulation piercing connection
Nickel/gold
III
0.14-0.34 mm²
0.14-0.34 mm²
0.14-0.34 mm²
0.14-0.34 mm²
IP65/IP67
2.9-5.1 mm
100
Documents & Downloads
Datasheet
Datasheet 3008391 HARTING 21031112315 Connector 1 pc(s)
Datasheet 3008391 HARTING 21031112315 Connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008391 HARTING 21031112315 Connector 1 pc(s)
