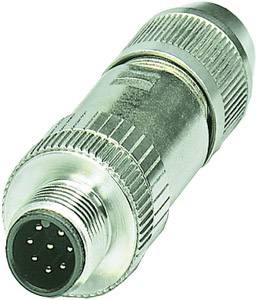

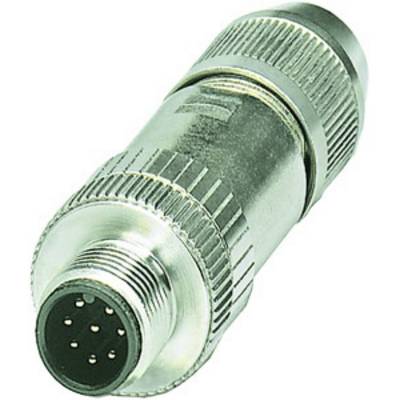

HARTING 21031211801 Connector Plug, straight 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Plug, straight
Connection
IDC
Cut & Clip connector
Content
1 pc(s)
Nominal current - rounded value
2 A
Datasheet (PDF)
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
14-day return policy included
Technical specifications
- Round connector M12-L
- Dimensioning surge voltage: 1.5 kV
- Shielding: shielded
- Gender: Pen
- Resistance: ≤ 10 mΩ
- Pollution level 3
- Tightening torque 0.4 Nm
- Mating cycles: ≥ 100
- Overvoltage category II
- Material application: Polyamide (PA)
- Contact surface: Gold-plated
- Wire outer diameter: ≤ 1.6 mm
- Type
21031211801
- Product type
Connector
- Connector type
Plug, straight
- Connection
IDC
Cut & Clip connector
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
2 A
- Min. temperature
-40 °C
- Nominal current - rounded value
2 A
- Seal
Screw-type locking
- Nominal voltage
30 V
- Contact material
Brass
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Case material
Diecast zinc
26 - 22
- No. of contact sizes
8
- Code
A
- Weight
43.8 g
- Manufacturer part #
21031211801
- Cable Ø range
4 - 8 mm
- max. cross section
0.34 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 0.34 mm²
- RoHS-compliant
Yes
- Feature
A-coded
IP65
IP67
- UKCA
yes
