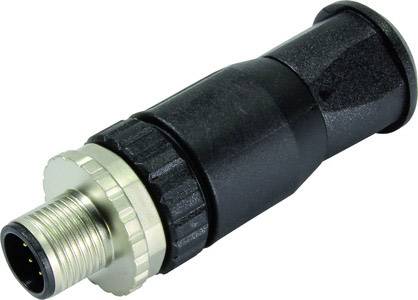

HARTING 21033191801 Connector Plug, straight 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Plug, straight
Connection
Screws
Content
1 pc(s)
Nominal current - rounded value
2 A
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Dimensioning surge voltage: 1.5 kV
- Shielding: Unshielded
- Gender: Pen
- Resistance: ≤ 10 mΩ
- Pollution level 3
- Tightening torque 0.6 Nm
- Mating cycles: ≥ 100
- Over voltage category III
- Material application: Polyamide (PA)
- Contact surface: Gold-plated
- Wrench size: 18
- Type
21033191801
- Product type
Connector
- Connector type
Plug, straight
- Connection
Screws
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
2 A
- Min. temperature
-30 °C
- Nominal current - rounded value
2 A
- Seal
Screw-type locking
- Nominal voltage
30 V
- Contact material
Brass
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Case material
Polyamide
20
- No. of contact sizes
8
- Code
A
- Weight
28.5 g
- Manufacturer part #
21033191801
- Cable Ø range
4 - 8 mm
- max. cross section
0.5 mm²
- Cross-section range
0.5 mm² (max)
- RoHS-compliant
Yes
- Feature
A-coded
IP67
- UKCA
yes
