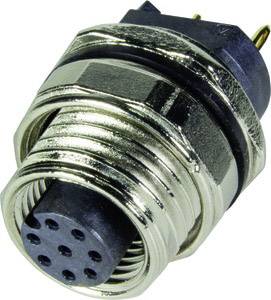

HARTING 21033212830 PCB connector Socket, straight 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Connector type
Socket, straight
Connection
THR
Content
1 pc(s)
Nominal current - rounded value
2 A
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
14-day return policy included
Technical specifications
- Dimensioning surge voltage: 1.5 kV
- Shielding: shielded
- Gender: Female
- Resistance: ≤ 10 mΩ
- Pollution level 3
- Tightening torque: 2 Nm lock nut
- Mating cycles: ≥ 100
- Over voltage category III
- Material application: Liquid crystal polymer (LCP)
- Contact surface: Gold-plated
- Type
21033212830
- Product type
PCB connector
- Connector type
Socket, straight
- Connection
THR
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
2 A
- Min. temperature
-40 °C
- Nominal current - rounded value
2 A
- Seal
Screw-type locking
- Nominal voltage
30 V
- Mounting type
Rear wall installation
- Contact material
Copper alloy
- Case material
Diecast zinc
- No. of contact sizes
8
- Code
A
- Weight
26.4 g
- Manufacturer part #
21033212830
- RoHS-compliant
Yes
- Feature
A-coded
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1990255 HARTING 21033212830 PCB connector Socket, straight 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1990255 HARTING 21033212830 PCB connector Socket, straight 1 pc(s)
