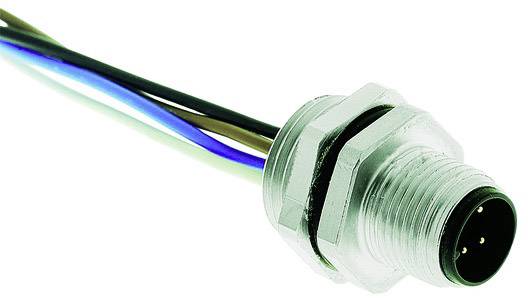

HARTING 21033711405 Feedthrough 1 pc(s)
EAN:
Part number:
Item no:
Product type
Feedthrough
Content
1 pc(s)
Nominal current - rounded value
4 A
Nominal voltage
250 V
Type
Harting
Datasheet (PDF)
Highlights & Details
Feedthrough
Our service for you
Technical specifications
- Panel thickness: 1 mm - 4 mm
- Dimensioning surge voltage: 1.5 kV
- Shielding: Unshielded
- Gender: Pen
- Resistance: ≤ 10 mΩ
- Pollution level 3
- Tightening torque: 2 Nm lock nut
- Mating cycles: ≥ 100
- Length of strands: 50 cm
- Over voltage category III
- Material application: Polyamide (PA)
- Contact surface: Gold-plated
- Type
Harting
- Product type
Feedthrough
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
4 A
- Min. temperature
-40 °C
- Nominal current - rounded value
4 A
- Seal
Screw-type locking
- Nominal voltage
250 V
- Contact material
Brass
- Case material
Diecast zinc
20
- No. of contact sizes
4
- Code
D
- Weight
32.33 g
- Manufacturer part #
21033711405
- max. cross section
0.5 mm²
- Cross-section range
0.5 mm² (max)
- RoHS-compliant
Yes
- Feature
D-coded
incl. leads
IP67
- Mounting type
Front mounting
Documents & Downloads
Datasheet
Datasheet 1990293 HARTING 21033711405 Feedthrough 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1990293 HARTING 21033711405 Feedthrough 1 pc(s)
