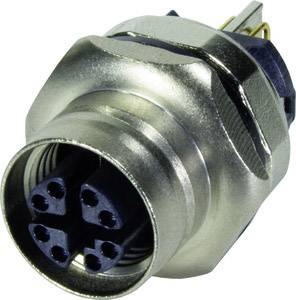

HARTING 21033814810 PCB connector Socket, right angle 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Connector type
Socket, right angle
Connection
THR
Content
1 pc(s)
Nominal current - rounded value
500 mA
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
14-day return policy included
Technical specifications
- Dimensioning surge voltage: 1.5 kV
- Shielding: shielded
- Gender: Female
- Resistance: ≤ 10 mΩ
- Pollution level 3
- Tightening torque: 2 Nm lock nut
- Mating cycles: ≥ 100
- Over voltage category III
- Material application: Liquid crystal polymer (LCP)
- Contact surface: Gold-plated
- Type
21033814810
- Product type
PCB connector
- Connector type
Socket, right angle
- Connection
THR
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
0.5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
500 mA
- Seal
Screw locking, PushPull
- Nominal voltage
50 V
- Mounting type
Front mounting
- Contact material
Copper alloy
- Case material
Diecast zinc
- No. of contact sizes
8
- Code
X
- Weight
28.2 g
- Manufacturer part #
21033814810
- RoHS-compliant
Yes
- Feature
X-coded
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1990287 HARTING 21033814810 PCB connector Socket, right angle 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1990287 HARTING 21033814810 PCB connector Socket, right angle 1 pc(s)
