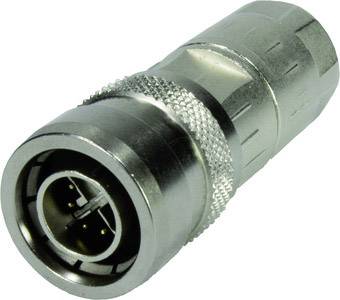

HARTING 21038811830 Connector Plug, straight Total number of pins: 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Plug, straight
Total no. of pins
8
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Dimensioning surge voltage: 0.8 kV
- Shielding: shielded
- Gender: Pen
- Resistance: ≤ 10 mΩ
- Pollution level 3
- Mating cycles: ≥ 500
- Over voltage category III
- Material application: Liquid crystal polymer (LCP)
- Wire outer diameter: ≤ 1.4 mm
- Type
21038811830
- Product type
Connector
- Connector type
Plug, straight
- Total no. of pins
8
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
0.5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
500 mA
- Seal
Push-pull
- Nominal voltage
48 V
- Cable Ø (max.)
8.8 mm
- Cable Ø up to
5.7 mm
- Case material
Diecast zinc
28 - 23
- No. of contact sizes
8
- Code
X
- Weight
43 g
- Manufacturer part #
21038811830
- Cable Ø range
5.7 - 8.8 mm
- Number of pins
8
- max. cross section
0.25 mm²
- Min. cross section
0.08 mm²
- Cross-section range
0.08 - 0.25 mm²
- RoHS-compliant
Yes
- Feature
X-coded
IP65
IP67
- UKCA
yes
