HARTING 66 63 009 6016 Bus interface Spring-loaded heavy duty connector - 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bus interface
Type A
Spring-loaded heavy duty connector
Number of pins
9
Content
1 pc(s)
Manufacturer part #
66630096016
Datasheet (PDF)
Highlights & Details
Bus interface
- Spring-loaded heavy duty connector -
Technical specifications
- Series D-Sub
- Component: Bus interface
- Connection type: Spring-cage connection
- Number of contacts: 9
- Locking type: Allen screw thread 4-40 UNC
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 500
- Test voltage Ueff 0.5 kV
- Material application: Thermoplastic molding material, glass fiber reinforced
- Material contacts: Copper alloy
- Contact surface: Precious metal over Ni
- Net weight: 78 g
- RATED VOLTAGE < 50 V AC;< 75 V DC
- Gender: Jack
- Conductor cross-section: AWG 28 ... AWG 20
- Stripping length: 5 ... 6 mm
- Description: CAN interface
- Protection class according to IEC 60529:IP40
- Tightening torque: ≤0.4 Nm locking screw;≤0.3 Nm cover screw
- Size D-Sub 1
- Design: Straight cable input
- Cable input 2x
- Material housing: Zinc-Druckguss
- Length: 61.7 mm
- Width 31.6 mm
- Height: 1.8" (14.8 mm)
- Orientation: Reverse
- Product type
Bus interface
- Type A
Spring-loaded heavy duty connector
- Number of pins
9
- Content
1 pc(s)
- Manufacturer part #
66630096016
- Contact material
Copper alloy
- Material (details)
Moulded thermoplastic material, glass-fibre reinforced
- Type
66 63 009 6016
Bus (jack)
Spring cotter
9
Female
Documents & Downloads
Datasheet
Datasheet 3007472 HARTING 66 63 009 6016 Bus interface Spring-loaded heavy duty connector - 1 pc(s)
Datasheet 3007472 HARTING 66 63 009 6016 Bus interface Spring-loaded heavy duty connector - 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007472 HARTING 66 63 009 6016 Bus interface Spring-loaded heavy duty connector - 1 pc(s)
Description

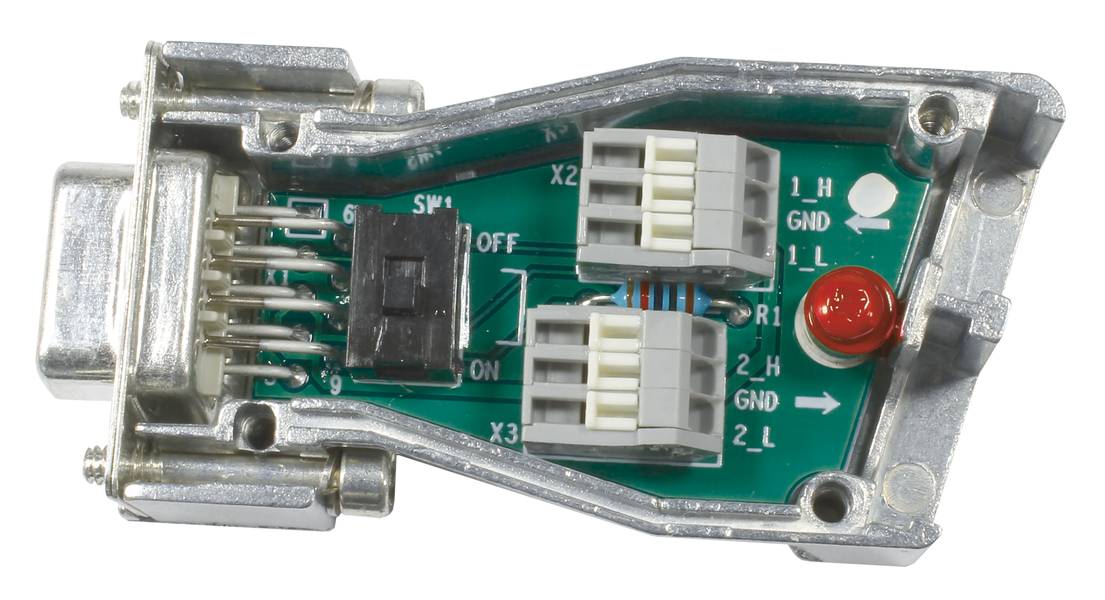

Bus interface, CAN interface, cage spring-cage connection, socket, size: D-Sub 1, Moulded thermoplastic material, fiberglass reinforced, contacts: 9
