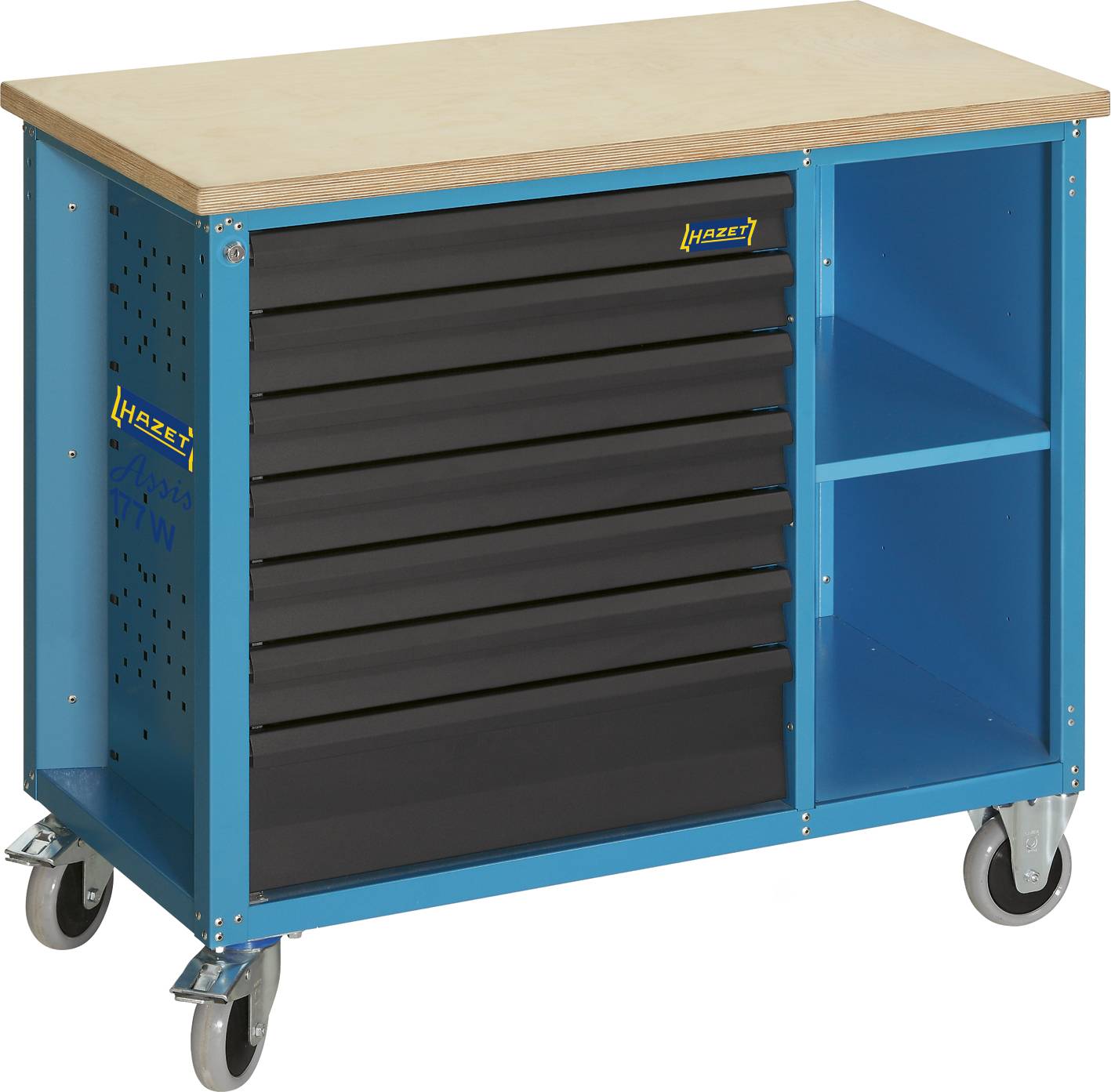

Hazet 177W-7 Workbench (W x H x D) 1040 x 934 x 1040 mm
EAN:
Part number:
Item no:
Number
Total (€ 1,214.29 / piece)
€ 1,214.29
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Dim
(W x H x D) 1040 x 934 x 1040 mm
- Product type
Workbench
- Width
1040 mm
- Thickness (worktop)
30 mm
- Height
934 mm
- Inside dimensions (H x W x D) mm
B 527 x T 348 mm
- Depth
1040 mm
- Material (worktop)
Multiplex beech
- Weight
92 kg
- Bases
2
- No. of drawers
7
- Features
On wheels
- Load capacity per drawer
20 kg
- Max. load (table)
750 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 801053 Hazet 177W-7 Workbench (W x H x D) 1040 x 934 x 1040 mm
Description
- Varied and robust. • Schubfacheinteilungs-System. • A lateral mounting surface, e.g. for HAZET-hook program article group 112, can holder, etc.. • 30 mm birch multiplex work plate, surface environmentally friendly oiled. • High-quality, ball-bearing rollers with filament protection and high load-bearing capacity. • Attachment Options for accessories program. Security - 2-stage locking concept. • Central Locking, can be locked with a cylinder lock with 2 keys. Individual lock prevents unintentional opening of drawers. Design drawers. • 100%. • Load capacity per drawer 20 kg, by default with a separation sheet per compartment. • Roller guide. • Suitable for HAZET-Safety insert system and HAZET-tool storage. • Schubfacher-Innenma size: B527x T 348mm--flat drawer H 80mm aperture height --high drawer H 165 mm panel height. Design storage areas in the shelf unit. • Load Capacity: 15 kg/below: 35 kg. • Shelf adjustable. - Permissible overall weight. • 500 kg (dynamic), 700 kg (static = standing, on a flat surface). Optional accessories • 177W-21: door for the right shelf unit, which can be locked with 2 keys, weight: 6 kg. • Made in Germany. Design - with 7 drawers (6 x flat drawers and 1 x high drawer and 2 storage areas in the shelf unit)
This text is machine translated.
This text is machine translated.
Features
- Large ball-bearing-mounted wheels (Ø 125 mm), - easy manoeuvrability, even with high dynamic load
- With thread guard - protects the bearings against dirt and threads
- Grey non-marking elastic tyres enable smooth movement
- Two-level locking concept: - Central locking, lockable with cylinder lock and 2 keys - -Individual drawer locking prevents unwanted drawer opening - 100% sliding-out with roller guide
- Two compartments in the side section: - Loading capacity top: 15 kg / bottom 35 kg - Boards adjustable
- Optional: 177 W-21: Door for right storage compartment, lockable, incl 2 keys
- Loading capacity (static): 750 kg
- Worktop: wood multiplex birch
- Loading capacity per drawer: 20 kg
- Colour: HAZET-BLUE
- Made in Germany
- With 7 drawers (6 x flat and 1 x high drawer as well as 2 compartments in the side section)
- Height: 934 mm
- Width: 1040 mm
- Net weight: 85 kg
- Drawers shallow: 6 x 74 x 519 x 348 mm
- Drawers tall: 1 x 159 x 519 x 348 mm
- Drawer size for order system: 3/3
- Number of separation sheets: 7
- Height of worktop: 934
- Number of fixed castors: 2 (Ø 125 mm)
- Number of swivel castors: 2 (Ø 125 mm)
- Height x width x depth: 934 x 1040 x 520
- The drawers are equipped with one separation sheet each as standard
- Drawer-Division-System - suitable for HAZET "Safety-Insert-System" and plastic drawer inserts
- Side fastening panel, eg for HAZET tool hooks of the article group 112, can holder, etc
