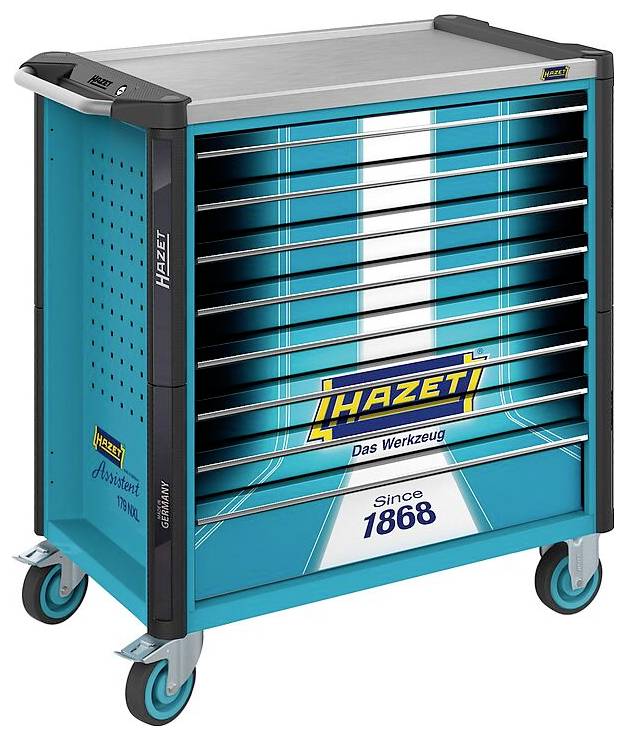

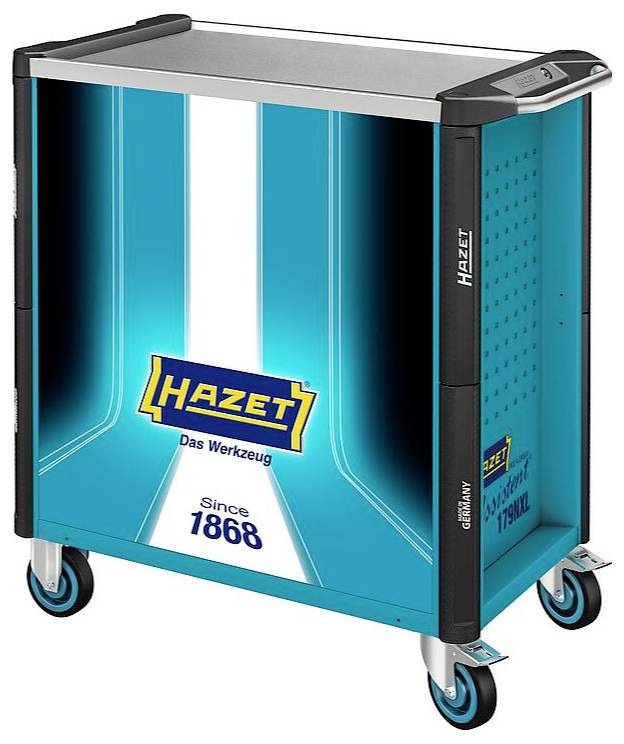

Hazet 179NXL-8S1 Workshop trolley Factory colour: Blue, Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mobile Workshops
- Without tools
Technical specifications
- Model ∙ Special feature
- – Special Edition –
- Drawer, high: 1× 166 x 696 x 398 mm
- Drawer, flat 7× 81 x 696 x 398 mm
- Total drawers: 8

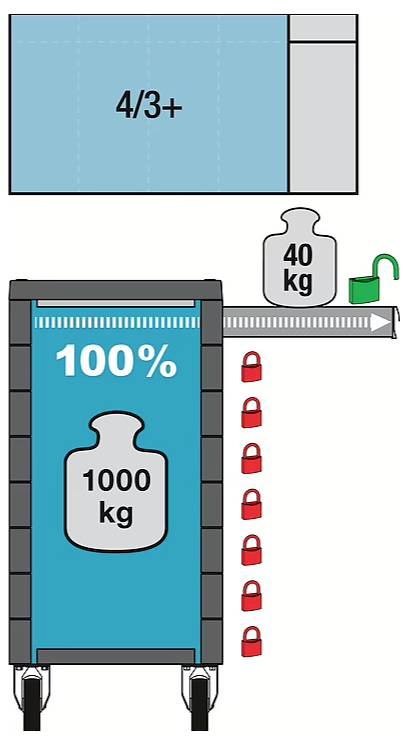

- 40 kg load capacity drawer
- (Drawers)size for order system: 4/3+
- Drawer dimensions 696 x 398 mm
- Drawer Comfort feature: Self-closing
- Drawer excerpt: 100%
- Drawer guide: With ball-bearing telescopic rails
- Drawer lock: Mutual release lock for minimum risk of tipping
- Drawer lock: With 2 articulated wrenches
- Working surface: Stainless steel
- Workshop trolley: Impact protection vertical, continuous edge protection on all four corners of the vehicle
- Capacity: 1000 kg (static)
- Total load capacity (dynamic): 750 kg

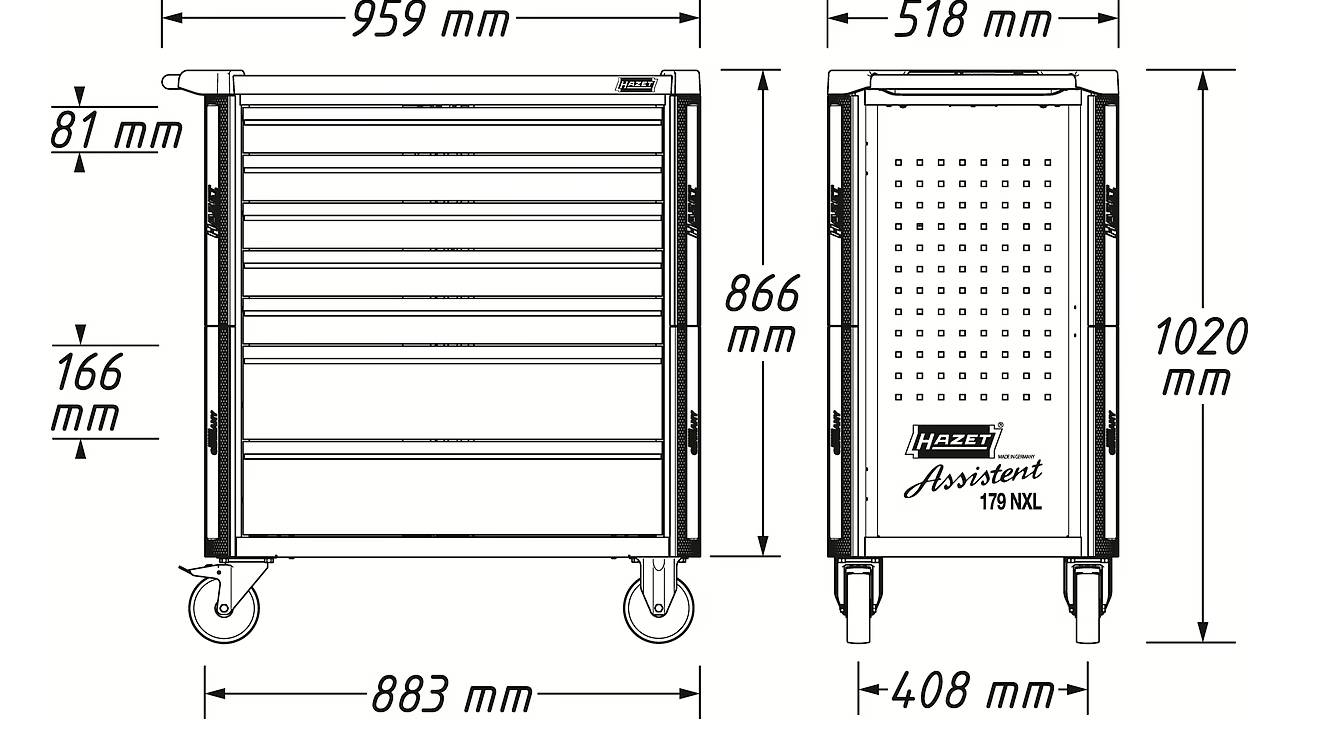

- Dimensions 959 x 518 x 1020 mm
- Number of castors: 2
- Diameter of rollers: 125 mm
- Number of fixed rollers: 2
- Diameter of fixed rollers 125 mm
- Number of rollers with brake: 2
- Product type
Workshop trolley
- Factory colour
Blue
Black
- Dim
(L x W x H) 959 x 518 x 1020 mm
- No. of drawers
8
- Content
1 pc(s)
- Width
518 mm
- Height
1020 mm
- Length
959 mm
- Load capacity (drawer)
40 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3557798 Hazet 179NXL-8S1 Workshop trolley Factory colour: Blue, Black
User & Safety Instructions
User & Safety Instructions 3557798 Hazet 179NXL-8S1 Workshop trolley Factory colour: Blue, Black
Description
Application:
Efficient, mobile organization of tools
Tool, material and assembly wagon
Be not standard – Be special with the 179NXL-8S1 assistant in a specially designed special edition. Show your enthusiasm for quality and your passion for our brand.
7 Flat drawers and 1 high drawer
Work surfaces
Considerably increased storage and working surface in stainless steel
Completely sealed work surface protects the inside of the vehicle in case of leaking liquids
Interfaces integrated into the work surface for accessories such as laptop holders and attachment modules
Stainless steel work surface
Special protection through high-quality plastic end caps
Body / driving handle
Extremely robust design thanks to double-walled design
Complete welding construction of the whole body for the daily hard workshop use
Optimised, giving edge protection at all four corners with real impact protection through internal damping concept
Ergonomically optimized drive handle for better flexibility
Brushed stainless steel handle
Locking concept
Ergonomically arranged side lock position for better operability protects key and lock from damage
Highly secure locking system with central locking technology for optimum protection of your property
2-level locking
Central locking, lockable by cylindrical lock with 2 bent keys
Mutual extension locking for minimum tilting risk
Drawer concept
Self-closing and mutual locking of drawers prevents accidental opening
100 % pull-out with ball-bearing telescopic rails
Drawer design for optimum use of the interior
Drawer fronts for optimized handling
Drawer coating that is resistant to dirt and simple to clean
High-performance chassis
Large heavy-duty wheels with precision ball bearings and double ball bearing in pivot bearing, simple to move even under high dynamic loads
2 swivel castors with double stop:
Braked rollers prevent rolling away
Braked swivel bearings prevent the rotating of castors, for example, on sloping surfaces
Protective ring prevents dirt and threads from penetrating
Elastic rollers allow quiet running
This text is machine translated.
