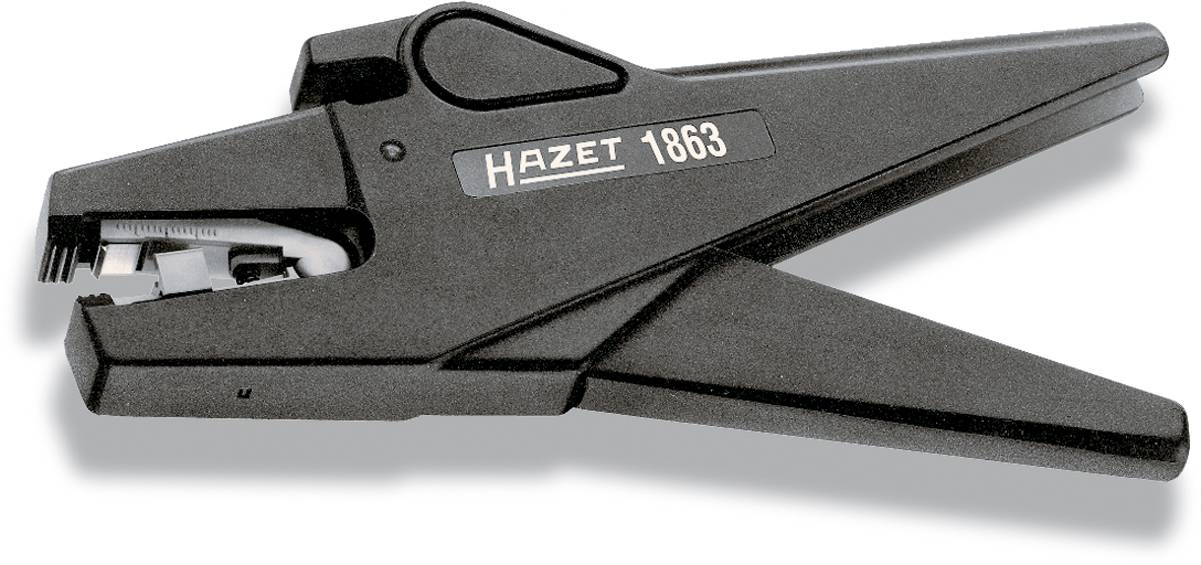

Hazet 1863 1863 Electrician Automatic stripper Incl. cable cutter 0.2 up to 6 mm²
EAN:
Part number:
Item no:
Technical specifications
- Product type
Automatic stripper
- Suitable for
PVC-coated cables
- Working area (cross section)
0.2 up to 6 mm²
- Working area cross section (min.)
0.2 mm²
- Operating range (cross section) (max.)
6 mm²
- Range of use
Electrician
- Length stop range
18 mm (max)
- Length stop (max.)
18 mm
- Length
205 mm
- Weight
200 g
- Features
Incl. cable cutter
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1288056 Hazet 1863 1863 Electrician Automatic stripper Incl. cable cutter 0.2 up to 6 mm²
Description
• For stripping the insulation of electrical wires, stranded conductors and cables. • For copper and aluminum cables. • Stripping range PVC-insulated conductors from 0.2 to 6 mm2 conductor cross-section. • Maximum adjustable stripping length 18 mm. • Spring-loaded lamella knife. • Automatic adjustment to the insulation thickness, problem-free stripping. • With wire cutter of 4 mm2 single-wire up to 6 mm2 fine-strand. EN/IEC 60900:2004 Made in Germany
Features
- Automatic adjustment to insulation thickness, easy application - perfect result
- Product advantage 2 / application: - For wire stripping of electrical conductors, stranded conductors and cables
- For copper and aluminium conductors
- Stripping range PVC-insulated conductors, cross-section 02 up to 6 mm2
- Maximum stripping length 18 mm
- Spring-loaded knife-type blades
- With wire cutter for 4 mm2 single-wired and 6 mm2 fine-stranded conductors
- Total length (for eClass): 205 mm
- Net weight: 02 kg
Hints
This text is machine translated.
