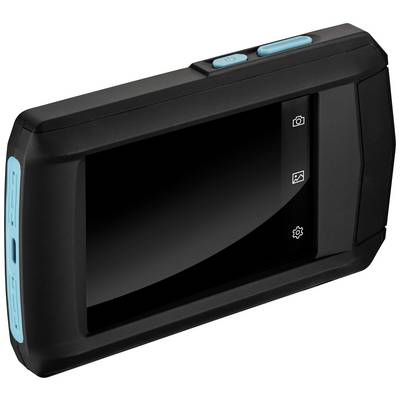

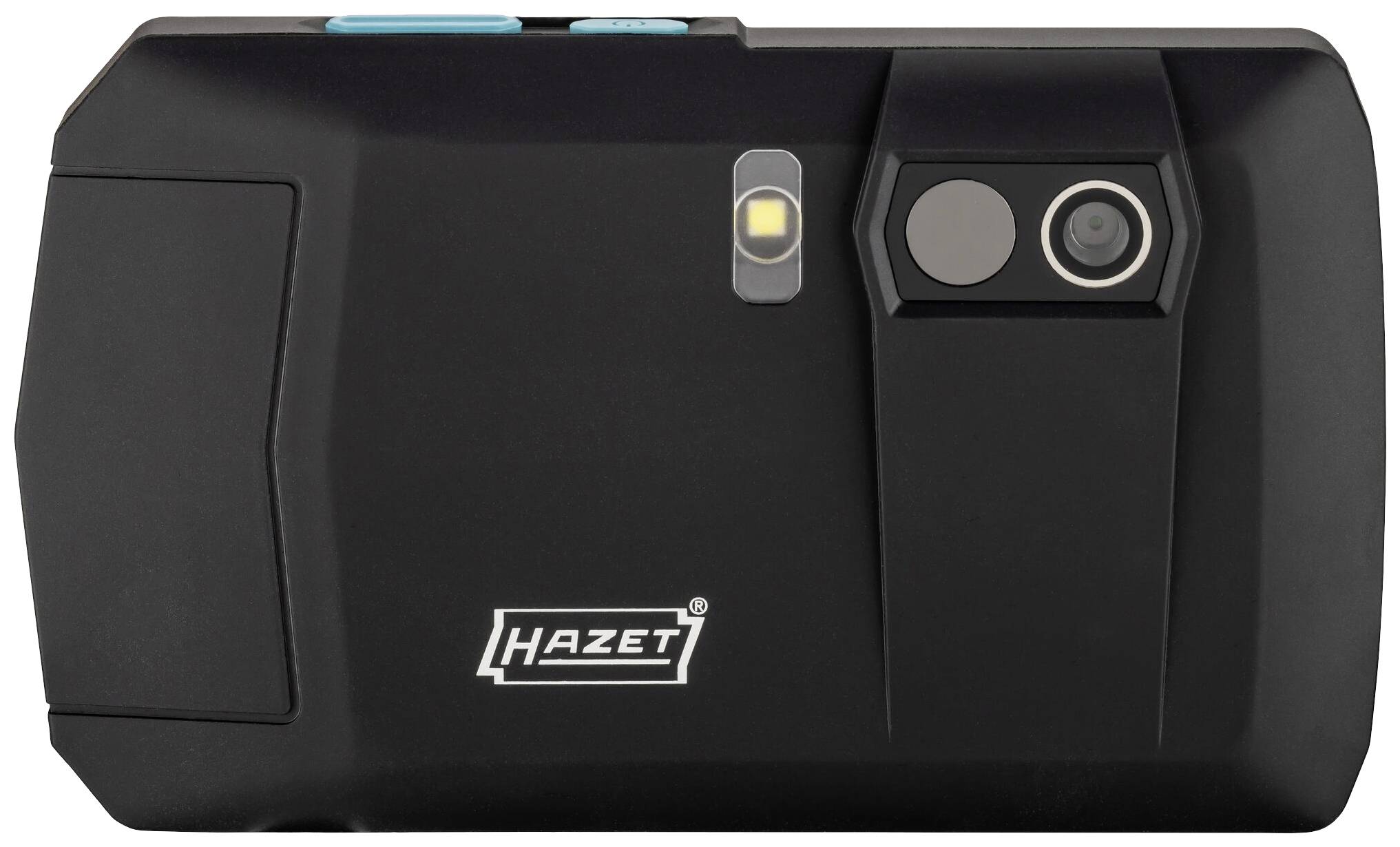

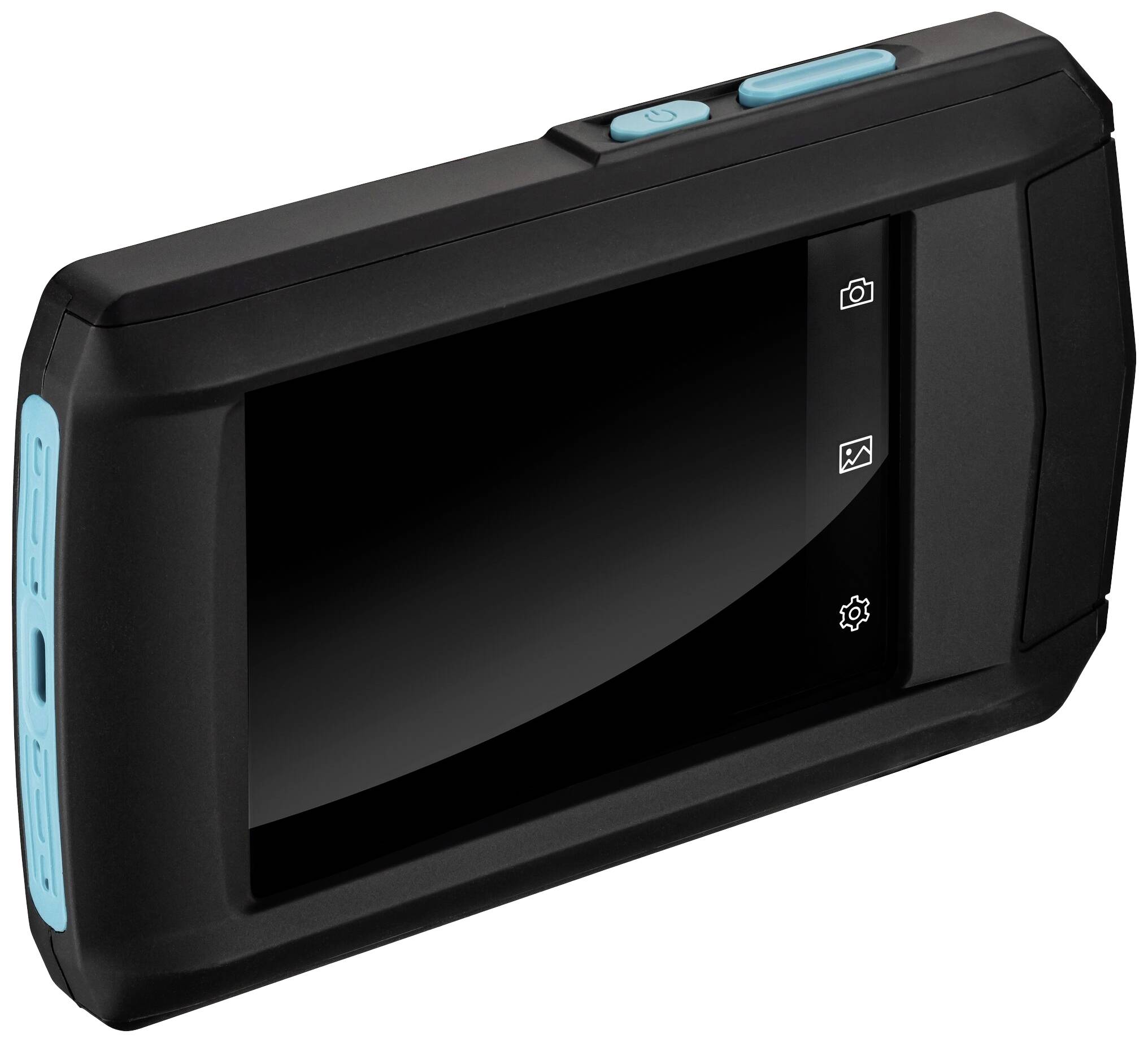

Hazet 1992-2 IR camera -20 up to +400 °C 256 x 192 Pixel 25 Hz Built-in digital camera
EAN:
Part number:
Item no:
Highlights & Details
THERMAL-IMAGING CAMERA
- 25 Hz Thermal imaging camera
- Temperature reading range -20 up to +400 °C
- 256 x 192 Pixel Bolometer matrix
- Thermal sensitivity 0.04 °C
Technical specifications
- Visual camera 3264 × 2448 pixels (8MP)Screen size: 3.5" LCD touchscreenThermal (or IR) resolution 256 x 192 pixelBattery runtime up to 4 hDigital zoom 1x to 4x
- Type
1992-2
- Product type
IR camera
- Bolometer array
256 x 192 Pixel
- Temperature reading range (max.)
+400 °C
- Temperature reading range (min.)
-20 °C
- Optics
37.2° x 50°
- Frame rate
25 Hz
- Display resolution
640 x 480 Pixel
IP54
- Thermal sensitivity
0.04 °C
- Dim
(L x W x H) 139 x 85 x 24 mm
- Digital zoom
4 x
- Weight
220 g
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-20 up to +400 °C
- Width
85 mm
- Height
24 mm
- Length
139 mm
- Features
Built-in digital camera
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2866057 Hazet 1992-2 IR camera -20 up to +400 °C 256 x 192 Pixel 25 Hz Built-in digital camera
Description
Thermal imaging camera for use in building diagnostics, electrical installation, sanitary, air conditioning and heating systems, engine compartment monitoring, braking systems, cooling and heating systems.
This text is machine translated.
This text is machine translated.
Features
- Automatic hot, cold and central point measurementRecording of videosImage modes: Thermal ∙ Optical ∙ Fusion ∙ BIB (picture in picture)Storage medium: EMMC 16 GB (included in delivery) ∙ up to 60000 images or 10 hours of video materialAdditional functions: LED light ∙ Microphone ∙ BuzzerWrist strapImage sensor: Vanadium oxide uncooled focal plane arrays (FPA)
