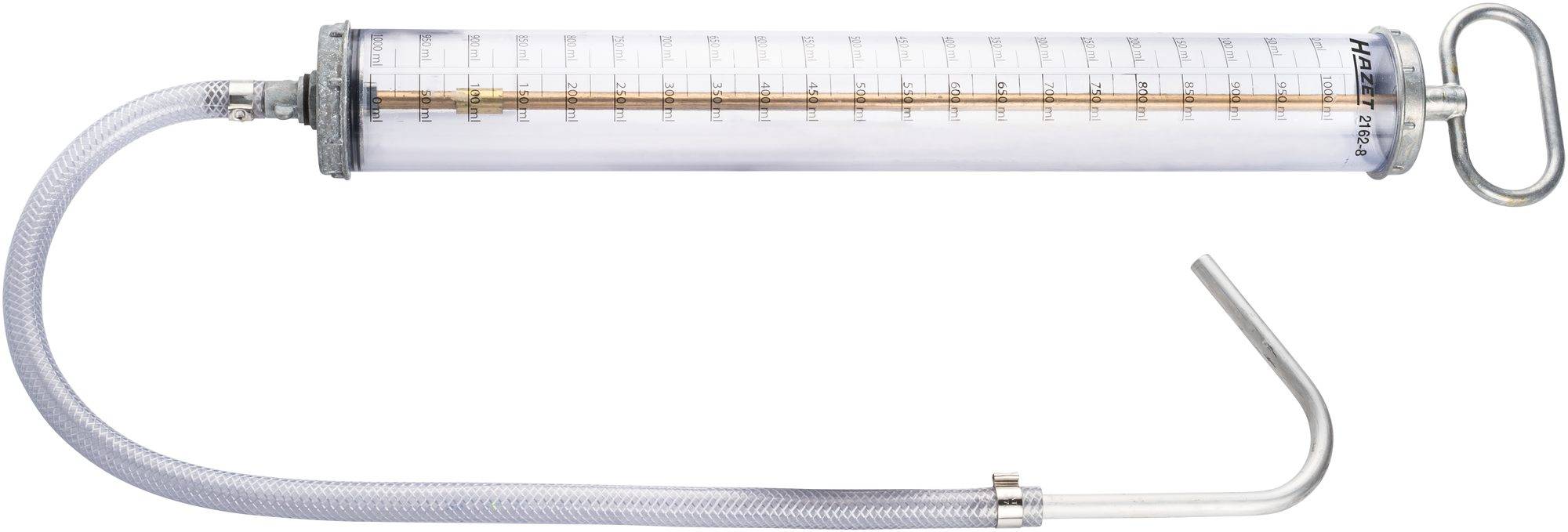

Hazet 2162-8 2162-8 Handheld doser 0.7 l mechanical
EAN:
Part number:
Item no:
Technical specifications
- Product type
Handheld doser
- Max. feed rate
4 l/min
- Operation type
mechanical
- Capacity
0.7 l
- Material
PVC
- Content
1 pc(s)
- Length
545 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1673963 Hazet 2162-8 2162-8 Handheld doser 0.7 l mechanical
Description
Application: For hydraulic oils 50 mm2/S, synthetic oils 500 mm2/s, heating and Dieselole, water and emulsions or contaminated waste oil. Precise control of various liquids through double scaling. Connection thread (hose/tube) on the pump base: M15x 1.5 Housing material: PVC (transparent) hose inner: 10 mm hose outside diameter: 16 mm. NBR sealings. Remove excess material can be sucked back again without any problems. Including flexible, transparent plastic hose fabric-reinforced. Including a curved 120° Aluminum Application Tube. 10 mm absorbent and dead bodies move hose length 600 mm plus application tube. Maximum transport quantity 4 l/min. Length 545 mm without hose. Net weight (kg): 0.97 kg. Content 0.7 l.
