Hazet 2548G-XZN8 2548G-XZN8 Joint socket bit Drive (screwdriver) 1/4" (6.3 mm) 39.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

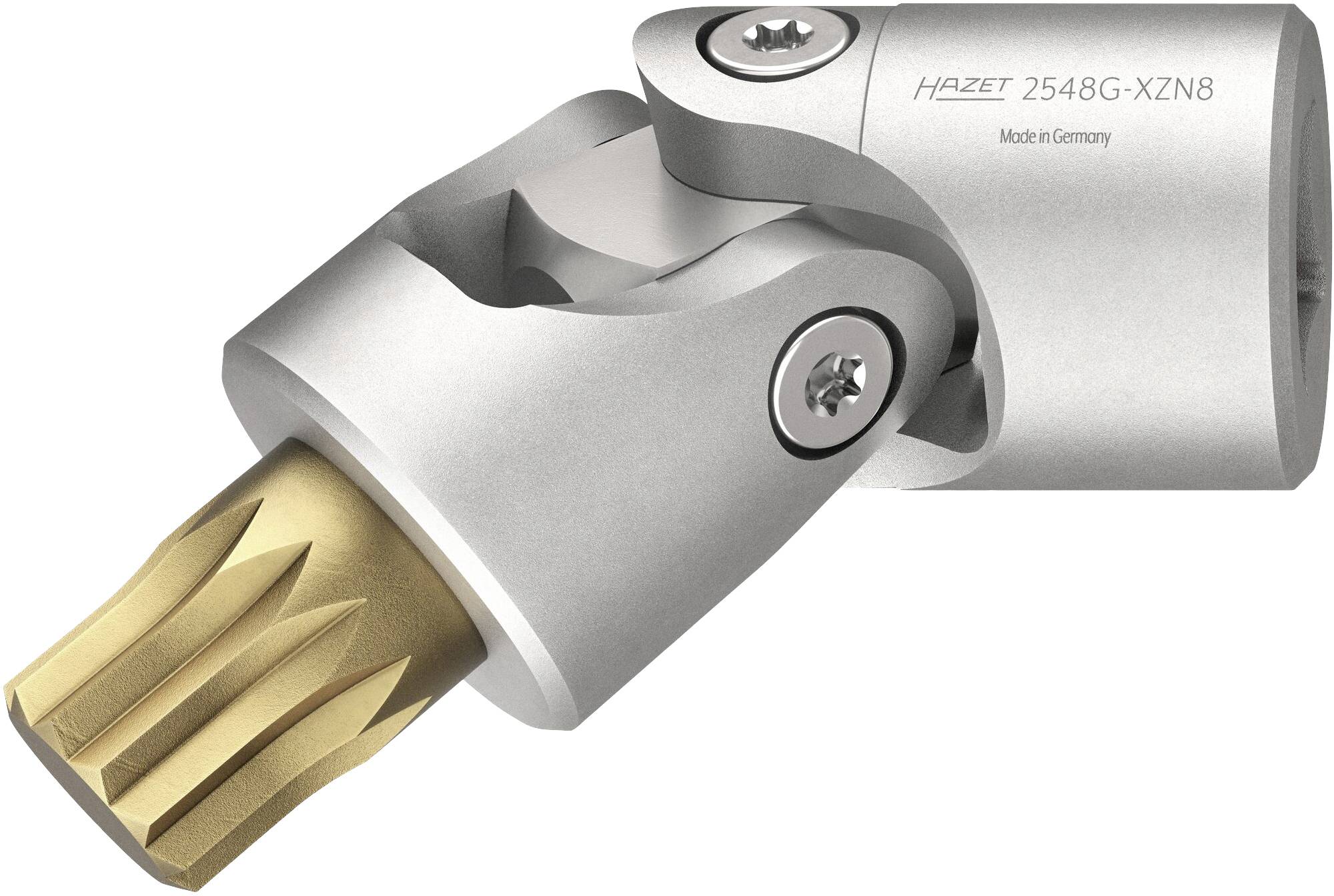

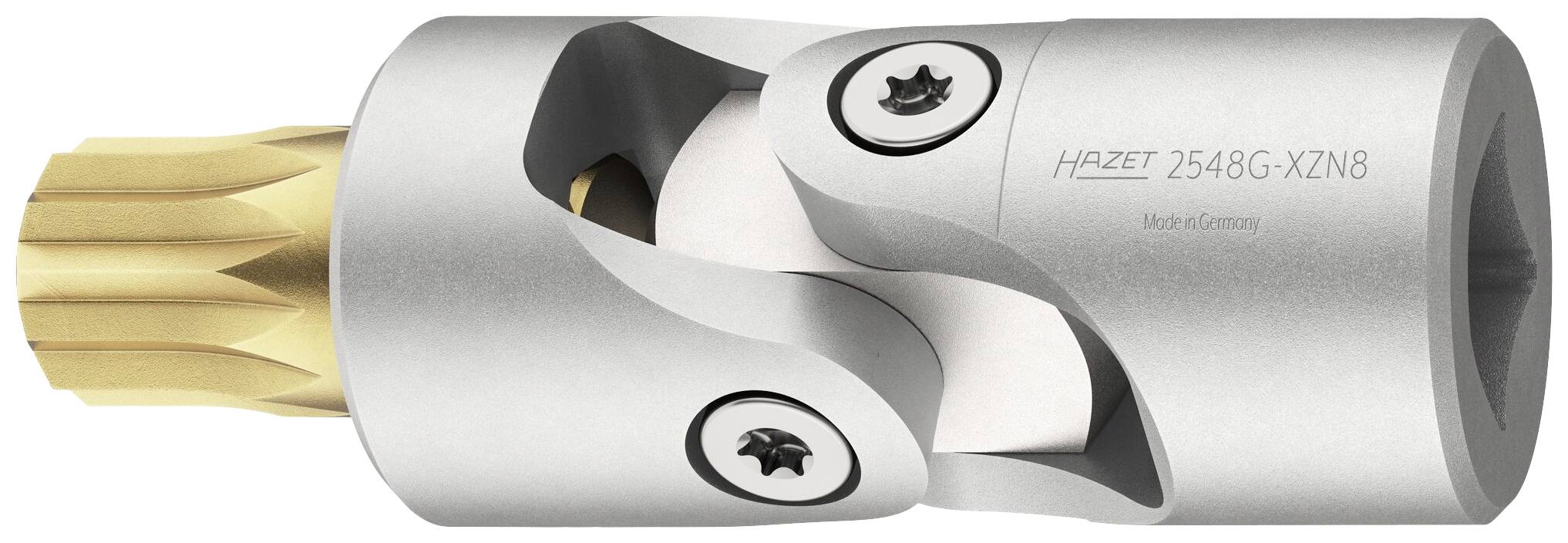

Hazet screw driver joint insert 2548G-XZN8
- Actuation of the mounting bolts of the 4/2-way valve with coolant regulator (Note: Coolant regulator is located inside the coolant pipe and cannot be replaced individually)
- This text is machine translated.
Technical specifications
- Product type
Joint socket bit
- Drive
1/4" (6.3 mm)
- Downforce
XZN socket
- Length
39.5 mm
- Max. length
39.5 mm
- Material
Chromium-vanadium steel
- Material properties
titanium-coated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017803 Hazet 2548G-XZN8 2548G-XZN8 Joint socket bit Drive (screwdriver) 1/4" (6.3 mm) 39.5 mm 1 pc(s)
Description
Features
- With joint for use in hard to reach areas and to avoid interference edges: Mounting screws are located behind the oil filter and are not accessible straight
- Application e.g. at: 4-cylinder diesel engine (2.0l common rail):
- AUDI A3 Bj. 2003 → 2013, TT Bj. 2008 → 2014, A1 Bj. 2011 → 2015, Q3 Bj. 2011 → 2018
- SEAT Altea year 2004 → 2015, León year 2005 → 2012, Altea XL year of construction 2006 → 2015, Alhambra year of construction 2010 → 2022 SKODA Octavia year of construction 2004 → 2013, Superb year of construction 2008 → 2015, Yeti year of construction 2009 → 2017
- VW Caddy models 2010-2015, EOS models 2018-2015, Golf Plus models 2008-2015, Passat models 6 → 2008, Passat CC models 2008 → 2016, Scirocco models 2008 → 2017, Golf 2010 models 2017 → 2012, Touran models 2010 → 2015, Beetle models 2011 → 2016, Jetta models 2010 → 2008, Tiguan year of manufacture 2007 → 2018
- Drive: Square 1/4 in. (6.3 mm)
- Output: Inner multi-tooth profile XZN
- Spanner opening ∙ M8
- Dimensions / length 39.5 mm
- Length: 10 mm
- For manual operation
