Hazet 2584-12/2 2584-12/2 Pin-in-XZN socket Bit set with pin 12.5 mm 1/2" M12 1/2" (12.5 mm)
EAN:
Part number:
Item no:
Highlights & Details
Hazet Screwdriver- socket wrench set 2584-12/2

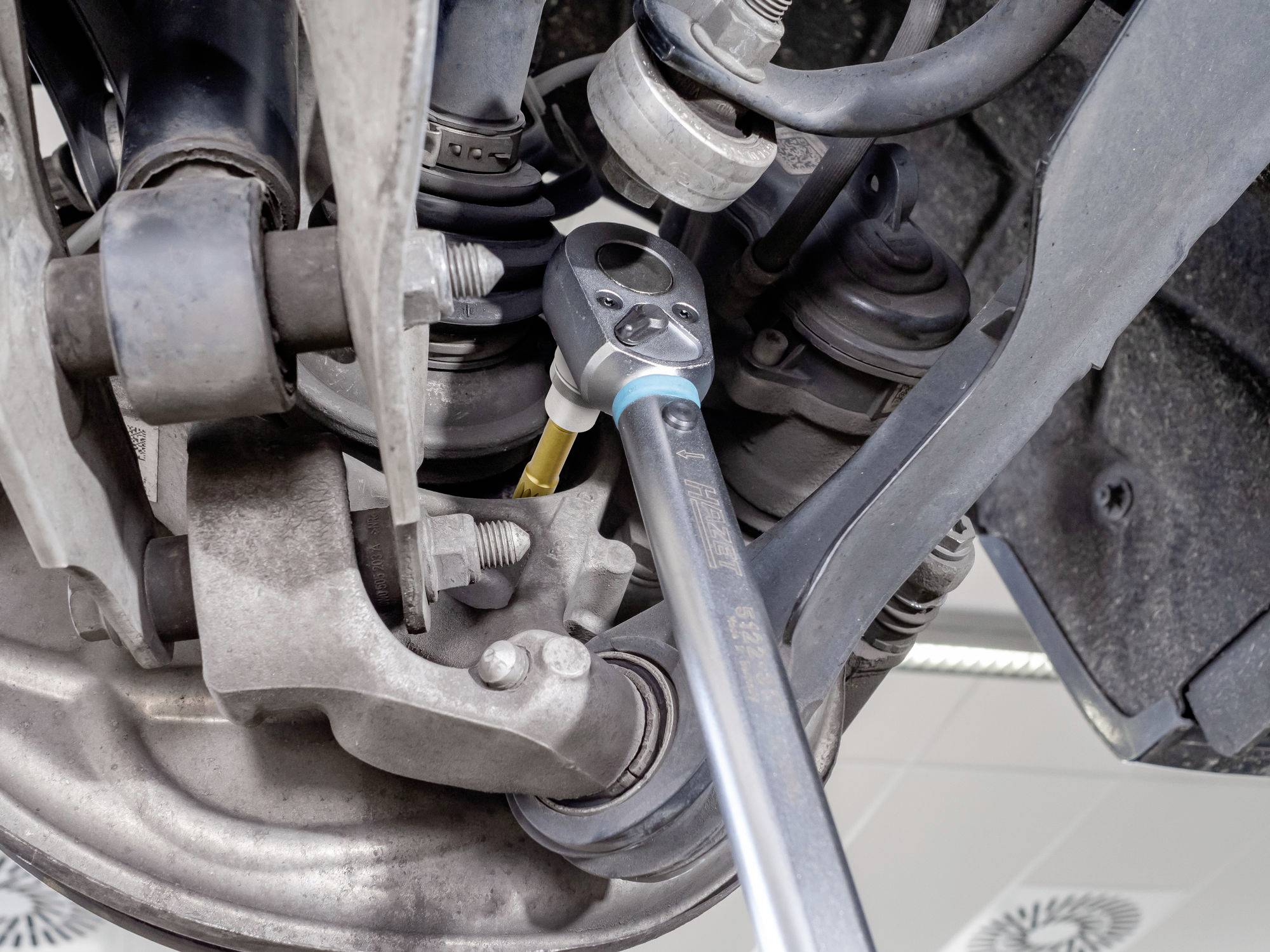

- Actuation of the wheel bearing screwed gland in aluminum housing at AUDI, VW, SEAT and SKODA
Technical specifications
- Product type
Bit set
- Drive
1/2" (12.5 mm)
- Spanner size
12.5 mm
- Ratchet bits (inch)
1/2"
- Size
M12
- Downforce
Pin-in-XZN socket
- Length
114 mm
- Max. length
114 mm
- Material
Aluminium
- Material properties
TiN
- Screwdriver features
with pin
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017791 Hazet 2584-12/2 2584-12/2 Pin-in-XZN socket Bit set with pin 12.5 mm 1/2" M12 1/2" (12.5 mm)
Description
Why TiN (titanium nitride) coating?
Special process for very hard TiN coating provides an extremely high adhesive and abrasion resistance of the layer
Optimally suitable for continuous use, e.g. series screw joints in industry and trade
Greater wear protection secures improvement of service life
Perfect fitting accuracy through optimum layer strength
Optimised corrosion protection
This text is machine translated.
Features

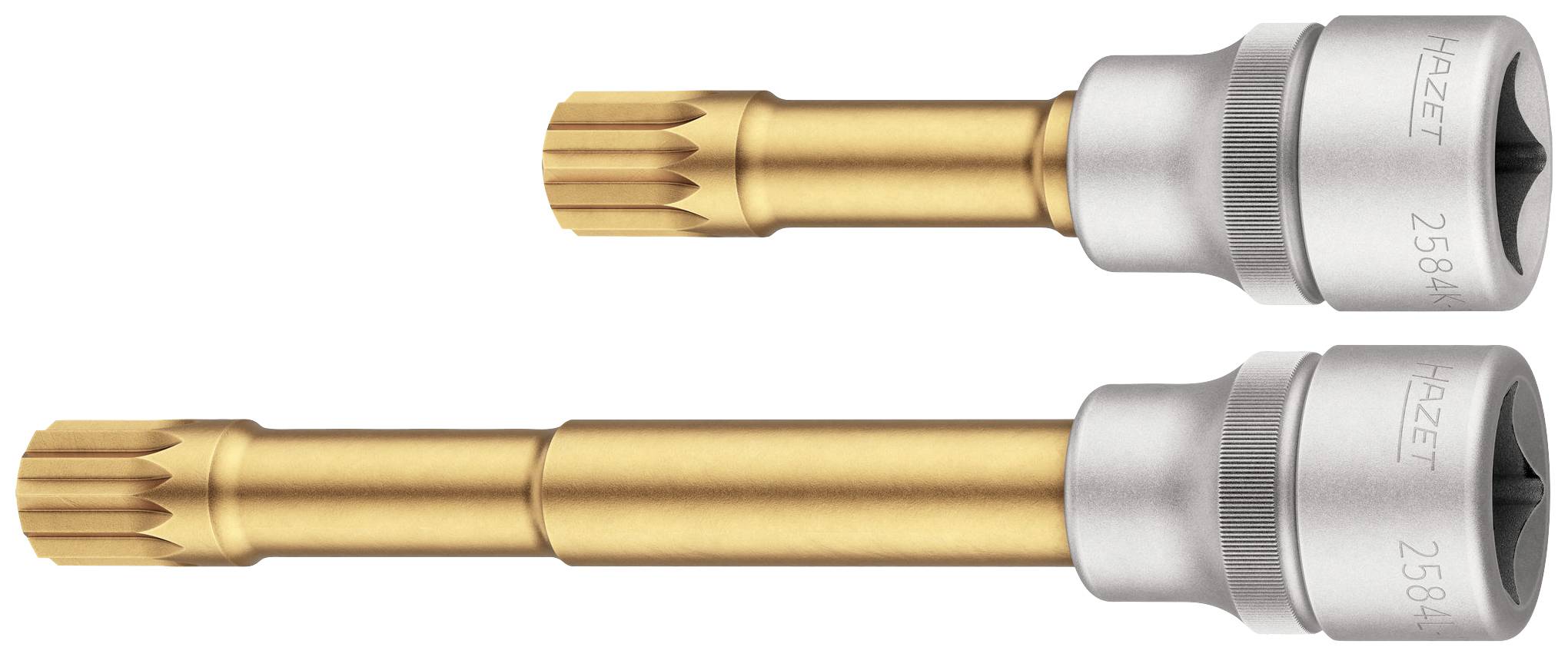

- Allows the wheel bearing gland to be loosened without removing the drive shaft and ball joint - time saving: About 35 minutes
- Two lengths for 4-link axle and McPherson spring struts
- Short version: Blade length 41 mm ∙ total length 74 mm
- Long version: Blade length 81 mm ∙ total length 114 mm
- For confined spaces - juvenation at the shaft enables the passing of the drive shaft joint
- Torque-controlled screw can be done
- With knurled
- Surface: TIN coated
- Drive: Square 1/2 in. (12.5 mm)
- Output: Inner multi-tooth profile XZN with pin
- Width across: M12
- For manual operation
