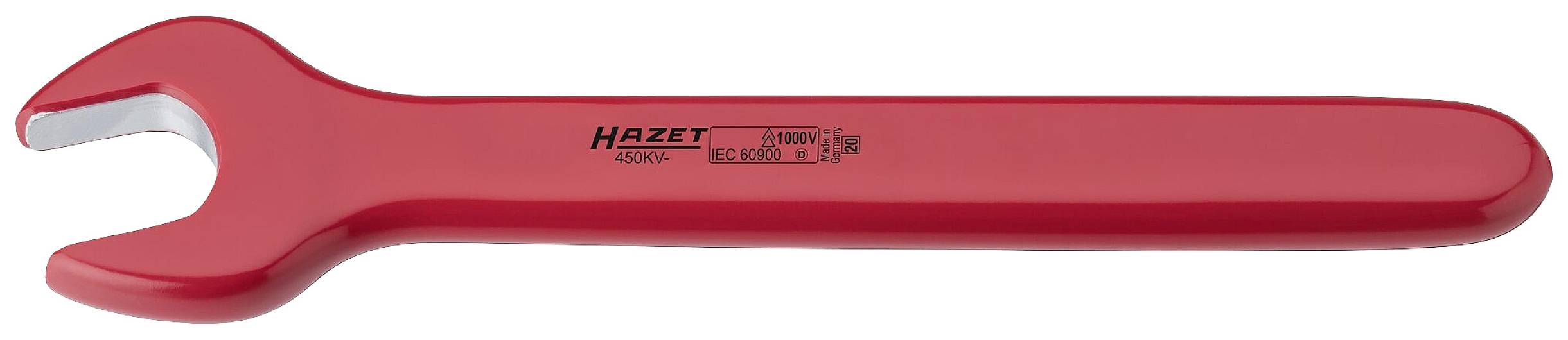

Hazet 450KV-12 450KV-12 Single-ended open ring spanner Spanner size (metric) 12 mm
EAN:
Part number:
Item no:
Technical specifications

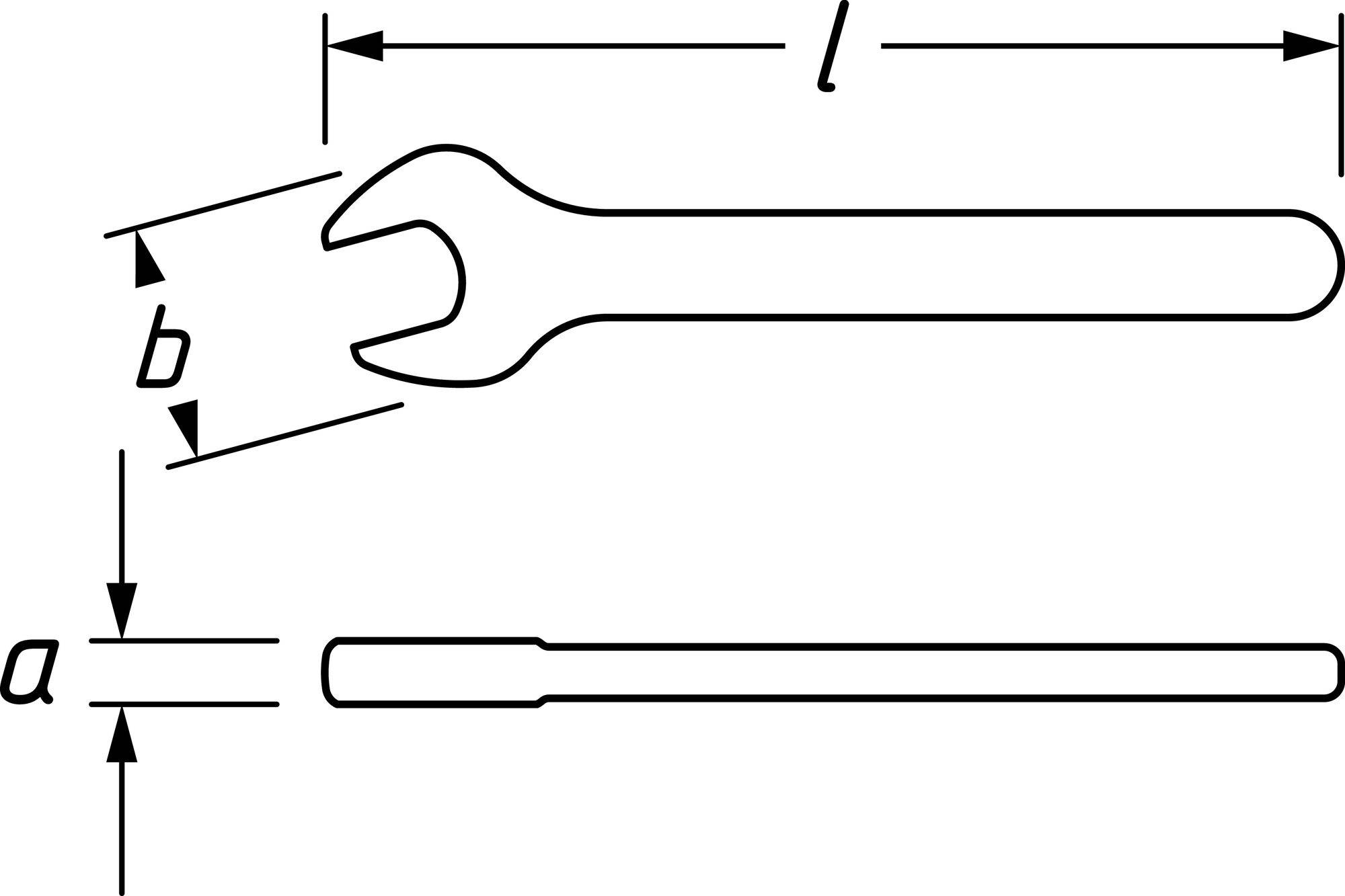

- Head width 29 mmHead thickness : 7.7 mmJaw position 15 °
- Product type
Single-ended open ring spanner
- Spanner size
12 mm
- Size
12 mm
- Length
133 mm
- Material properties
insulated
- Width
29 mm
- Height
133 mm
- DIN standard
DIN EN 60900
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2570201 Hazet 450KV-12 450KV-12 Single-ended open ring spanner Spanner size (metric) 12 mm
Description
Slim head Shaft with extra stable HAZET Double T-profile Mole setting: 15° Surface: Insulated IEC 60900:2018 Made in Germany Drive: Outer hexagonal Profile Key width: 12 mm Dimensions / length: 133 mm Protective insulation up to 1000V
