Hazet 4683-16 4683-16 Thread re-tapping head metric M16 1.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Thread re-tapping head
Thread spec
metric
Thread size
M16
Gradient
1.5 mm
Material properties
TiAIN
Highlights & Details

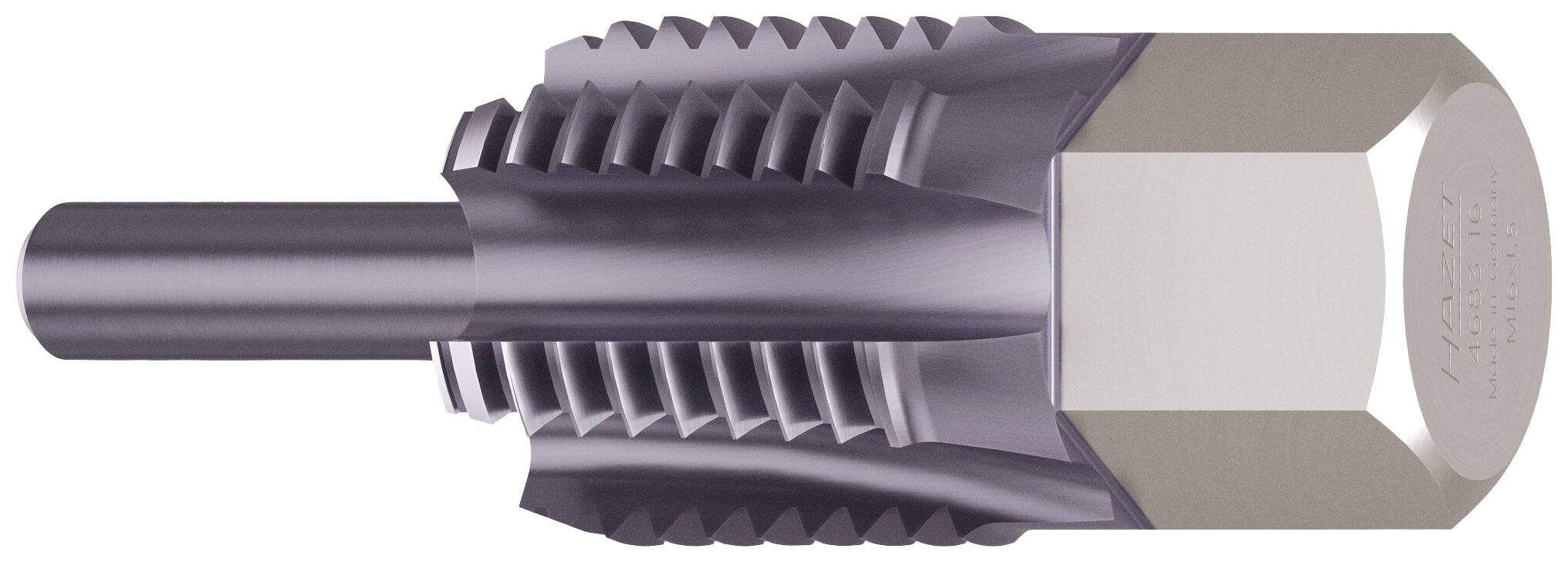

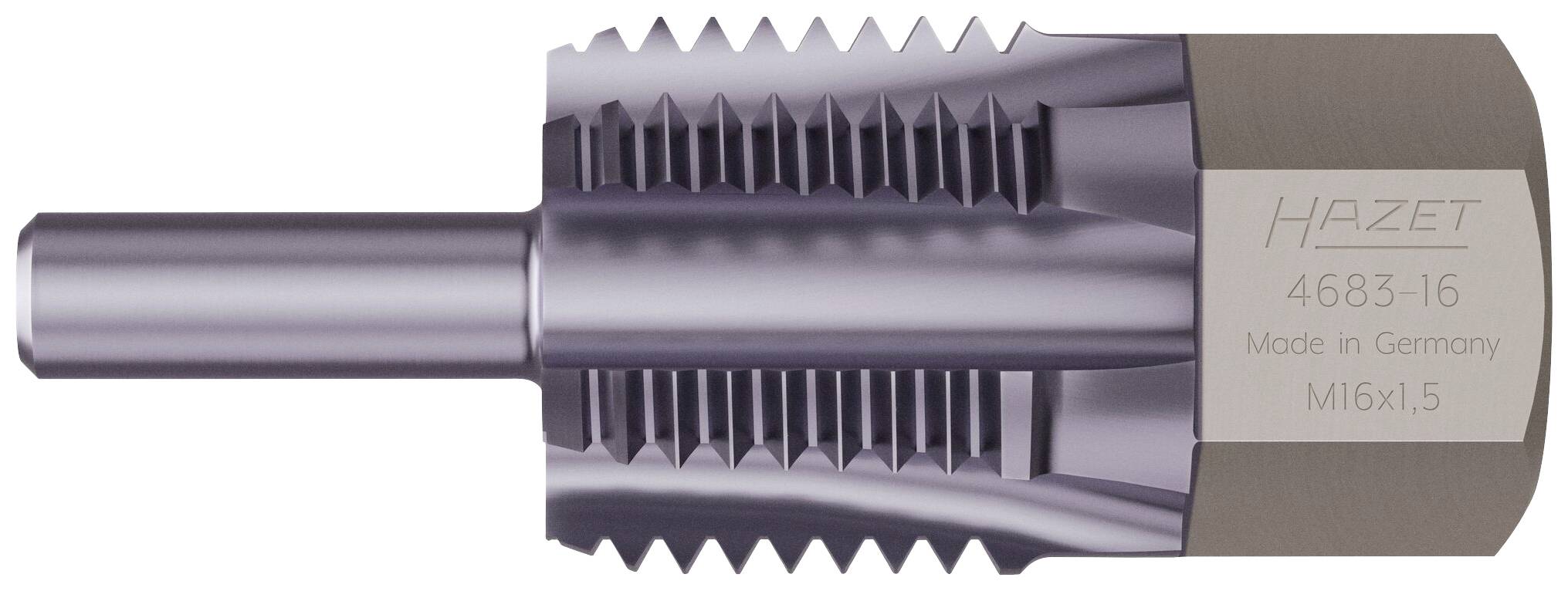

Hazet thread re-cutter exhaust gas temperature sensors / probes 4683-16
- Specialist re-cutting, cleaning or Repair the locating threads of the exhaust gas temperature sensors/probes
- This text is machine translated.
Technical specifications
- Drive: Hexagonal head 13 mm
- Product type
Thread re-tapping head
- Thread spec
metric
- Thread size
M16
- Gradient
1.5 mm
- Material properties
TiAIN
- Length
43 mm
- Tool holder
Hex
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017799 Hazet 4683-16 4683-16 Thread re-tapping head metric M16 1.5 mm 1 pc(s)
Description
Features
- Time savings: Replacement of the exhaust system is not necessary in most cases
- Thread size M16 x 1.5 mm
- For exhaust gas temperature sensors on: MERCEDES-BENZ Trucks, Bus, DAF NKW Actros (930, 932, 933, 934, 938), Axor (375, 940, 942, 943, 944, 950, 952, 953, 954, 958), Atego (375, 950, 952, 953, 954, 958), MERCEDES-BENZ BUS O 500 BM382, DAF CF 65 ∙ CF 75 ∙ CF 85 ∙ CF 105
- With guide bolt and cleaning grooves
- Guide bolt prevents the thread re-cutter from cropping and enables accurate re-cutting or Clean the threads that are scratched and damaged
- No tilting or cropping while re-cutting
- Short design for use in cramped construction spaces

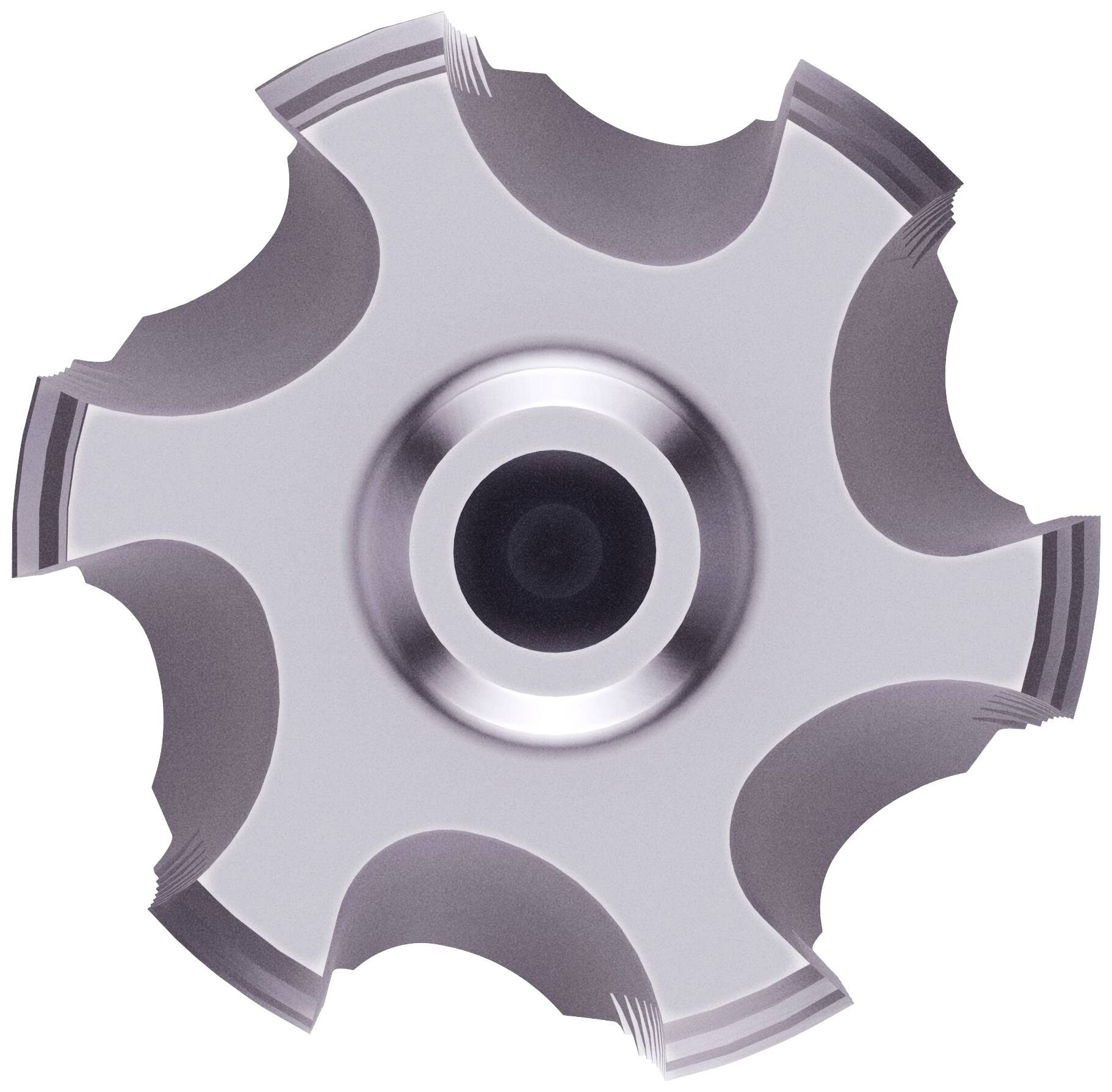

- 6 cutting surfaces for optimum fitting accuracy as well as simple and quick handling
- High quality TiAlN coating for longer service life
- Suitable for use with stainless steel components
- Made in Germany
- Drive: Hexagonal head 13 mm
- Dimensions / length 43 mm
- Why TiAlN (titanium aluminum nitride) coating?
- Suitable for drying voltage
- Ceramic surface minimizes friction
- Optimum service life
- Temperature resistant up to 800° C.
- No coolant required
